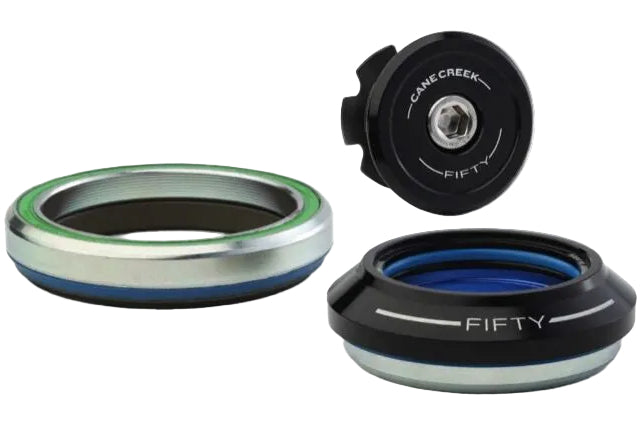

Cane Creek 50-Series IS41/28.6 IS52/40 Headset Assembly Black (BAA2353K)

New Look, Same Reliability.

The Fifty series positions itself as the ideal middle ground between entry-level and premium options, delivering contemporary design without premium pricing. Enhanced machining of the top cover and cups, combined with precision laser-etched detailing, creates a distinctly modern, angular aesthetic suited to current bike standards. Engineered with meticulous attention to detail by Cane Creek's Fletcher, NC facility, this headset balances performance-driven refinement with practical value for discerning riders.

KEY FEATURES

• CUPS & COVERS: 6061 T-6 Aluminium - Internally relieved to reduce weight
• BEARINGS: ZN40 sealed cartridge bearings, zinc-coated for corrosion resistance
• SEALING: Steerer tube o-ring seal, low friction top cover lip seal, co-molded crown race lip seal
• COMPRESSION RING: Carbon-friendly compression ring retained in top cover
• CROWN RACE: Steel: forged, then machined for increased hardness & durability
• SPACERS: Compatible with Cane Creek Interlok spacers + traditional. Spacers sold separately
• STACK HEIGHTS:
  External Cup (EC) — 15mm top, 11mm bottom
  ZeroStack (ZS) — 8mm top, 4mm bottom
  Integrated (IS) — 9mm top, 1mm bottom

SPECIFICATIONS

• Shipping Weight : 0.2000kg
• Shipping Width : 0.050m
• Shipping Height : 0.075m
• Shipping Length : 0.050m
• Shipping Cubic : 0.000188000m3
