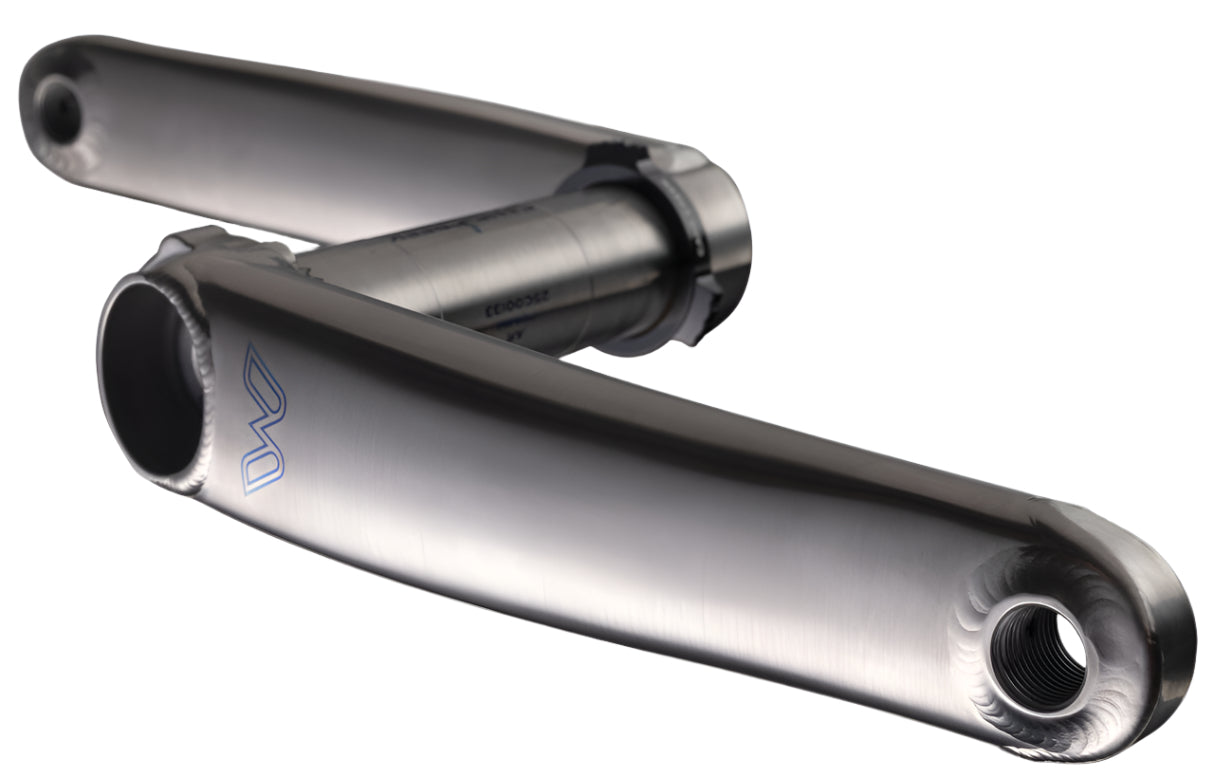

Cane Creek eeWings 8-Bolt All-Road Crank Assembly

Renowned for their exceptional durability and sleek design, the Cane Creek eeWings 8-Bolt All-Road Crank Assembly excels across diverse bikes—from gravel racers to rugged bike park setups, and even future custom builds. Offering the lightweight feel of carbon cranks combined with superior toughness and impact resistance, they deliver top-tier power transfer. Enhanced with an 8-bolt chainring and power meter compatibility, a user-friendly 8mm fixing bolt, and increased ground clearance, eeWings stand resilient where others fail, bend, or wear out—truly built to last.

100% Titanium
Butted 3/2.5 tubular titanium arms with machined 6/4 titanium spindle & Hirth joint.

Carbon Light
Starting under 398g – as light or lighter than top carbon cranks.

Peace of Mind
Lifetime Warranty

Showstopper
Timeless looks and perpetual style - eeWings look good with everything.

8-Bolt Compatibility
eeWings fit nearly every bike frame and are compatible with the latest popular drivetrains and power meters.

All-Road to Mountain
Incredibly low weight with unmatched durability – the holy grail crank for any type of bike.

Easy to Refinish
Brushed Ti finish allows you to polish out scratches and blemishes with a basic Scotchbrite pad.

CNC'd Aluminum Preloader
The small details are often the ones that make the biggest difference. eeWings come with a fully machined, 7000 series aluminum preloader for precisely setting the preload on your bottom bracket bearings and ensuring a perfect fit with your frame.

Titanium pinch bolt
2.5mm head for confident, secure adjustment.
Also available individually for use on other, third-party cranks

Hirth Joint
Compact and lightweight
Minimizes overlapping and redundant material yet maintains incredible torsional rigidity with very few parts
Promotes the most direct power transfer possible
Precision machined from 6/4 titanium
Secured with a single, oversized stainless steel fixing bolt

LIFETIME WARRANTY
We have such confidence in the eeWings’ quality and dependability that we back the cranks with a limited lifetime warranty. Combine that with our 110 bottom bracket and it’s literally the last crank and bottom bracket you’ll ever have to buy.

SPECIFICATIONS

• Weight - 398g (AR, 165mm)
• Materials - Butted 3/2.5 titanium arms with CNC 6/4 titanium spindle and Hirth joint
• Hardware - Stainless steel 8mm crank fixing bolt and chainring bolts
• Lengths - MTN: 160mm, 165mm, 170mm | AR: 165mm, 170mm, 172.5mm
• Q Factor - MTN: 176mm | AR: 160mm
• Preload Adjustment - Cane Creek CNC machined 7075 T-6 aluminum preloader
• Spindle - 30MM
• Chainring Interface - Sram 8-bolt - supports Transmission chainrings and Sram power meters. Compatible with Shimano GRX using Cane Creek GRX Spider.
• Warranty - Lifetime
