The Invert is the world’s first gravel fork, engineered to deliver a smoother ride and exceptional bike control on rough terrain, loose corners, and steep descents. It combines lightweight construction, ease of use, and an elegant design—qualities previously unmatched in drop bar forks. Designed to address the challenges of off-pavement riding, Invert enhances traction and comfort both uphill and downhill. This results in greater efficiency, reduced fatigue, and the confidence to navigate gravel surfaces with unprecedented ease.
KEY FEATURES
Rider Benefit Focused : Invert gives your bike unbelievable amounts of confidence and control & makes Gravel more enjoyable.
Lightweight : Only 990g, or 2.2 lbs for Invert SL and 1113g for Invert CS.
Good Looks : Striking, sleek looks integrate perfectly with the simple lines of drop bar bikes.
Easy to Use : Intuitive, single click Climb Switch is easy to operate while riding - even with gloves. No other complex tuning necessary.
Materials : Carbon fiber and premium aluminum construction.
Two Travel Options : 30mm SL Model and 40mm CS Model.
Invert CS (40mm)
Features Climb Switch that engages a firm setting for out of the saddle pedaling.
Invert SL (30mm)
Shorter travel and no Climb Switch for a more minimal and lightweight option.
Single-Step Set Up : Just set air pressure using shock pump and RIDE. Adjust to desired level.
Inverted Design : Promotes smoothest possible operation, lightest weight, & cleanest visual integration by using a layout opposite to conventional suspension forks.
Gravel-Specific : Tuned, progressive air spring balances traction with the right amount of support and is fully adjustable for rider weight.
Hand-Built : In Fletcher, NC.
SPECIFICATIONS
- Weight : 990g (SL) / 1113g (CS)
- Travel : 30mm (SL) / 40mm (CS)
- Chassis : Carbon fiber crown & steerer bonded to aluminum upper tubes

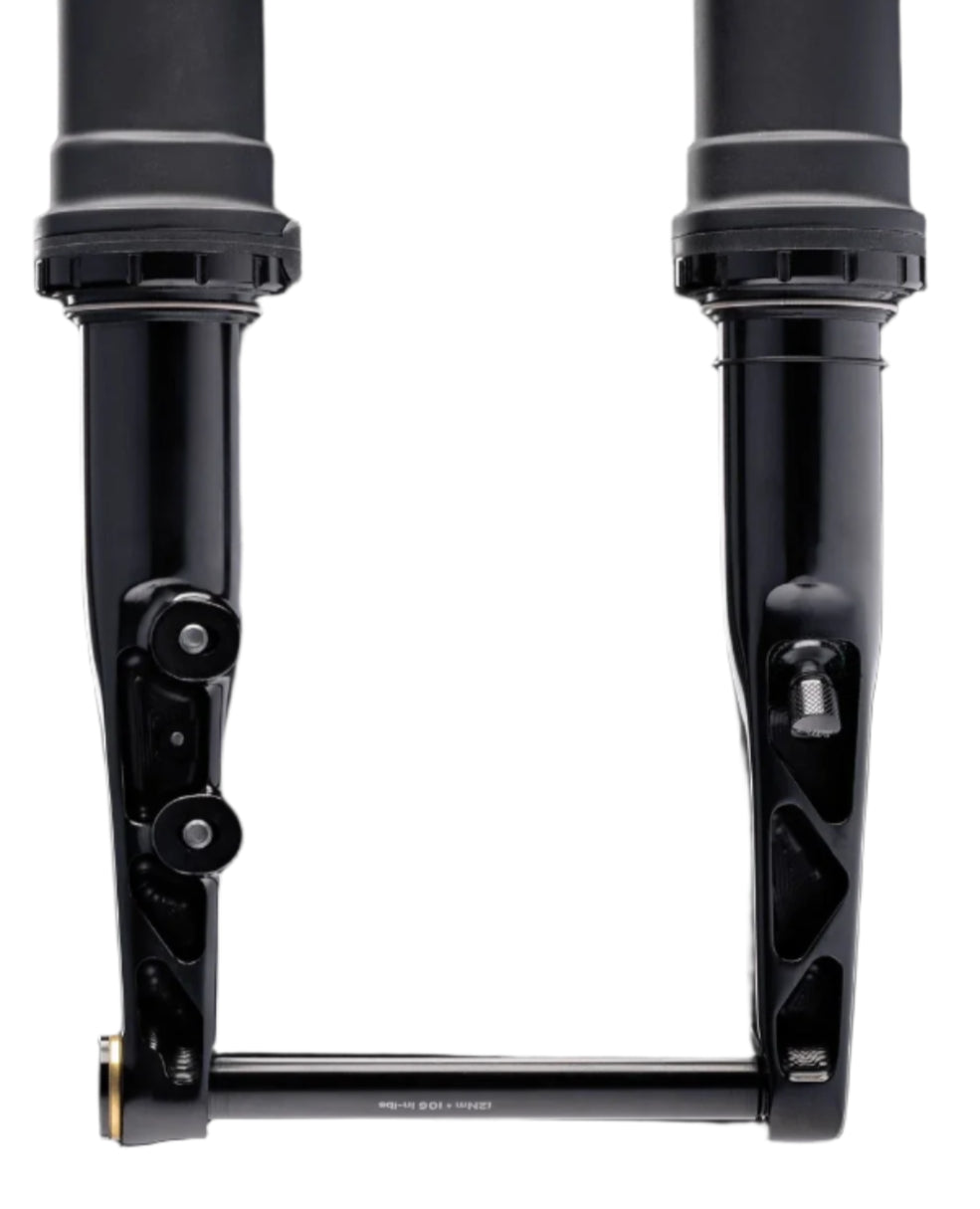

- Lowers : One piece, forged and machined 30mm stanchions with integrated hidden brake caliper bolts and hidden thru axle
- Max Tire Size : 700c x 50mm
- Brake : Flat mount disc for 160mm rotor (hardware included)180mm rotor compatible with any REAR +20mm flat mount adapter
- Hub Spacing : 12mm x 100 Thru Axle (axle included)
- ATC / OFFSET:
- SL – 425mm / 45mm
- CS- 435mm / 45mm
- Steerer Tube : 1 1/8” to 1.5” Tapered (28.6mm to 40mm)
- Crown Race : Integrated, 36 degree angle
- Adjustments : Air Spring adjusts for rider weight, Climb Switch on Invert CS engages firm mode out of saddle pedaling. Single-click activation dramatically reduces fork movement.
- Warranty : 2 Years
- Recommended Service Interval:
- 50 Hours: Splash oil flush – no special tools, no major disassembly
- 100 Hours: Full service
- Rider Weight Limit/Max PSI : 250 lbs / 250 psi
- Part Numbers
- Invert CS – 40mm Travel: BBG0005
- Invert SL – 30mm Travel: BBG0004
- Included :Ancora Premium Expansion Plug, 52mm ZN40 headset bearingBrake caliper mounting bolt
