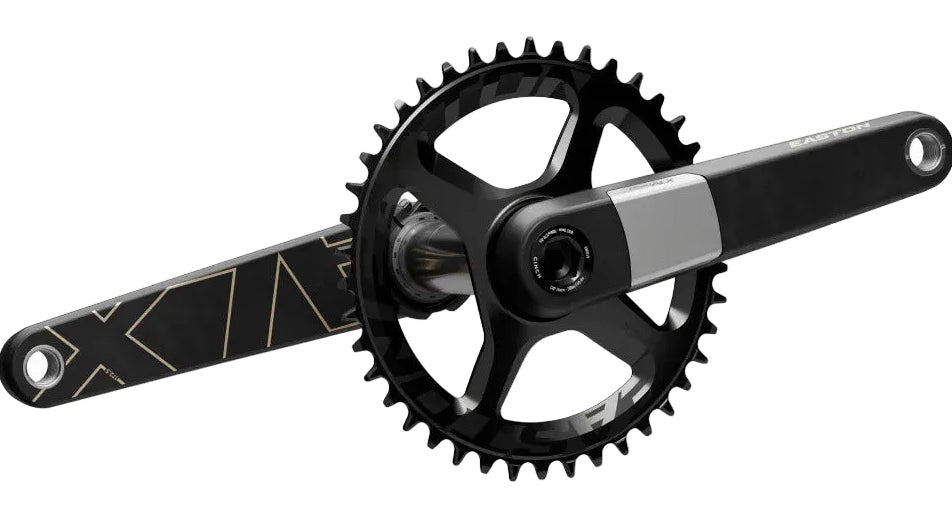

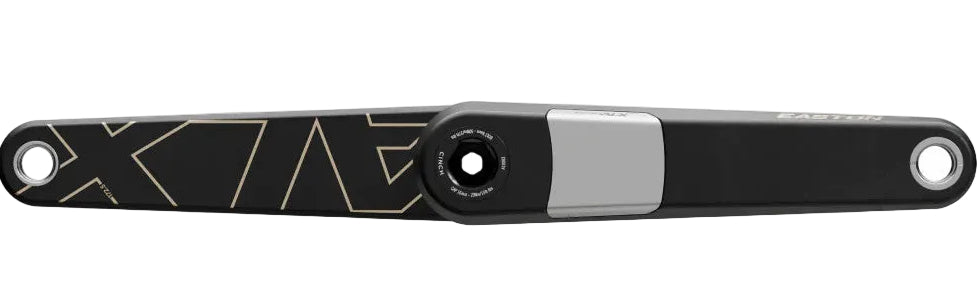

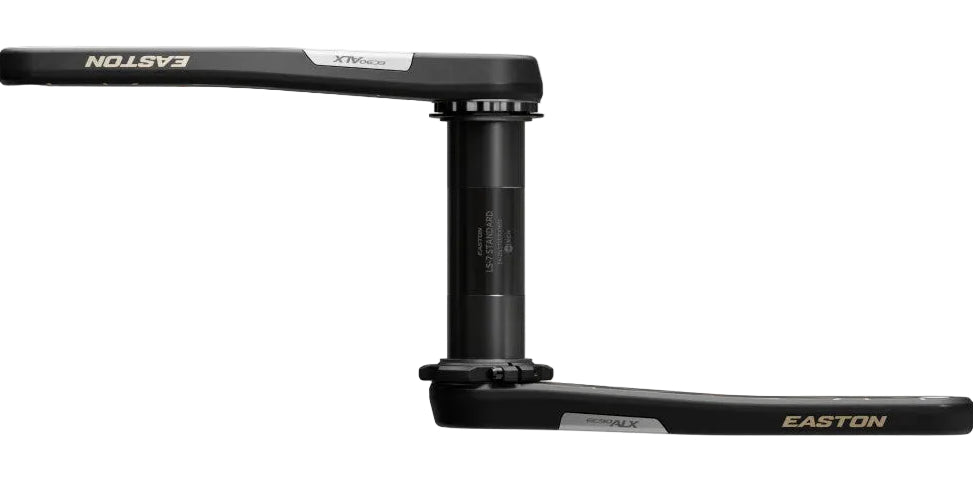

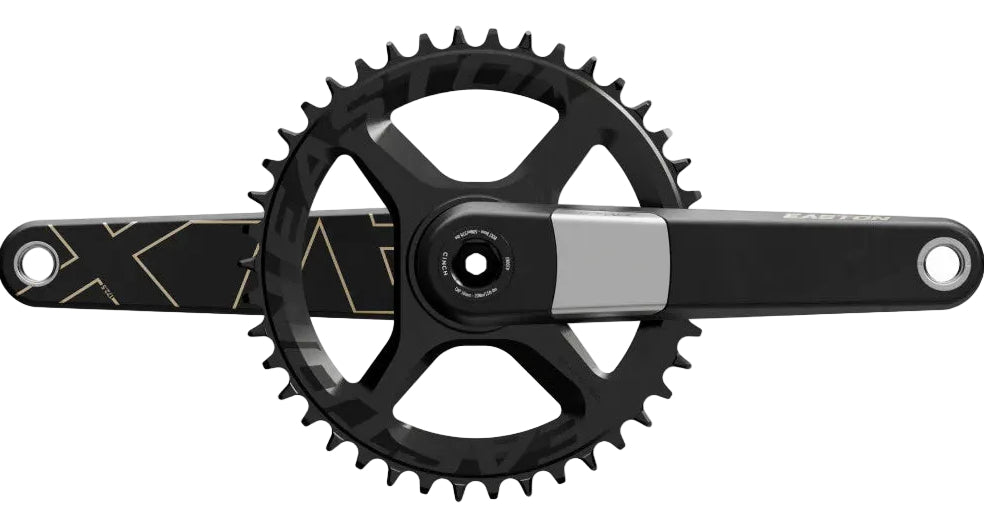

Easton EC90 ALX Black Crankset
FREE SHIPPING ON THIS ITEM*
Easton EC90 ALX Black Crankset - 160mm is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping on orders over $120 (excludes some large/oversized items) AUS only.
$20 Flat rate Express Shipping option available for non-bulky items. Usually delivered the next business day (Metro Areas) AUS only.
Same Day Dispatch on orders before 2pm (excludes supplier stock).
Delivery times will vary from 2-5 business days for metro areas and 7-14 business days for rural and remote areas.
Please see our full Shipping Policy here
The EC90 ALX Crank is Easton's lightest crankset to date, engineered to deliver exceptional strength and uncompromising performance for all-road riding. Designed from the ground up, the crank arms, spindle, and inserts have been optimized to eliminate unnecessary weight while maximizing stiffness and power transfer. Increased heel clearance and integrated wear protection further enhance durability and rider comfort, making it a reliable choice for everything from smooth pavement to mixed-terrain adventures.
All-Road Wear Plate
A strategically positioned wear plate protects high-contact areas from heel rub, helping preserve the crank's finish and extending its lifespan during long-term use.
Many Lengths Made Light
A proprietary carbon fiber layup is bonded to ultralight inserts using an advanced resin system to achieve exceptional strength, durability, and low weight. The Lite-Spline (LS) spindle and redesigned crank arms further reduce weight, while five crank arm length options provide an optimal fit for a wide range of riders.
CRANKARM SPECS
- Crank Lengths: 160mm, 165mm, 170mm, 172.5mm and 175mm
- 2x Ring Configuration: 46/36T, 47/32T, 46/30T AX Gravel Rings
- 1x Ring Configurations: 38T, 40T, 42T, 44T (SHI 12S), 36T, 38T, 40T, 42T, 44T (FLT Top 12S)
- Material: Unidirectional carbon fiber body, stainless steel wear plate. Aluminum pedal and spindle inserts.
- Weight:
*329g – Crankset with LS Standard spindle only, 170mm length.
*419g – Crankset with LS Standard spindle, 170mm length, SHI 12 40T 1x chainring.
- Q-Factor: 150mm (with LS Standard Spindle)
- Spindle Diameter: 30mm (CINCH)
- Max System Weight: 121kg
- Spindle Compatibility:
*LS Standard Spindle – Shimano Road, SRAM 1x and 2x drivetrains.
*LS Wide Spindle – Shimano Gravel drivetrains (GRX/Cues).
SPINDLE SPECS
- LS Standard Spindle – EC90 ALX cranks with Shimano Road, SRAM 1x and 2x drivetrains.
- LS Wide Spindle – EC90 ALX cranks with Shimano Gravel drivetrains (GRX/Cues).
