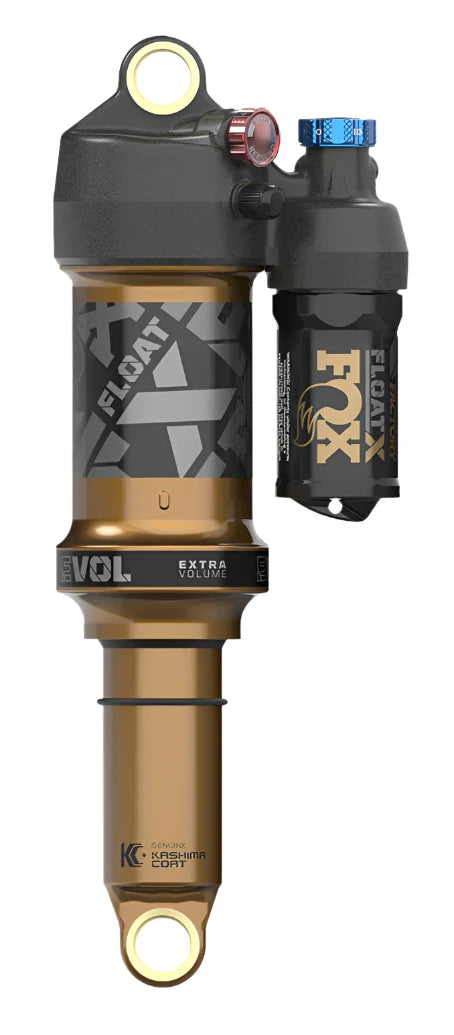

Fox Factory FLOAT X Evol LV 2pos-Adj Rear Shock

Unleash the potential of your all-mountain adventures. The unparalleled dampening, lasting performance, and unmatched endurance of the FLOAT X shock make it the go-to choice for all-mountain riders seeking the ultimate riding experience. With tool-free adjustment for compression and rebound, the FLOAT X allows for customized tuning based on the trail and riding conditions. Its adjustable 11-click low-speed compression dial and two-position lever switch work independently, offering optimal tuneability for descents and convenience for climbs. Designed with the perfect piggyback reservoir size for each shock size and paired with a large EVOL air chamber, the FLOAT X ensures consistent ride feel for long, challenging descents. This top-of-the-line shock is built to handle any aggressive trail or all-mountain ride, while accommodating a wide range of frame designs and geometries.

KEY FEATURES

• High-flow piston architecture for smooth compression and wide range of tuneability
• Reservoir with secondary compression circuit for enhanced bump sensitivity, tire grip, and descending performance
• Base Valve for lower IFP pressures without cavitation
• Volume spacers in precise increments for ultra-fine air spring tuning
• MCU bottom-out bumper for smooth end-stroke progressivity
• Numbered tool-free 12-position single-turn LSC (Low Speed Compression) adjuster
• Independent firm mode circuit via on-the-fly flickable 2-position adjuster
• Wide range of rebound adjustment to suit all preferences and terrains
• Optimized reservoir lengths per shock size for reduced weight and improved fitment
• Hydraulic top-out feature to eliminate harshness at full extension
• Optimized air volumes for lower operating pressures and winder range of tuning
• Convenient air valve location for frame fitment and pump access
• Bearing hardware compatible both sides
• Kashima coating
• Fox Mounting Hardware. Sold separately
• Available in Metric sizing only:  190x45, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65,
• Trunnion sizing also available: 185x52.5, 185x55, 205x60, 205x62.5

Find the Fox Tuning Guide here.
