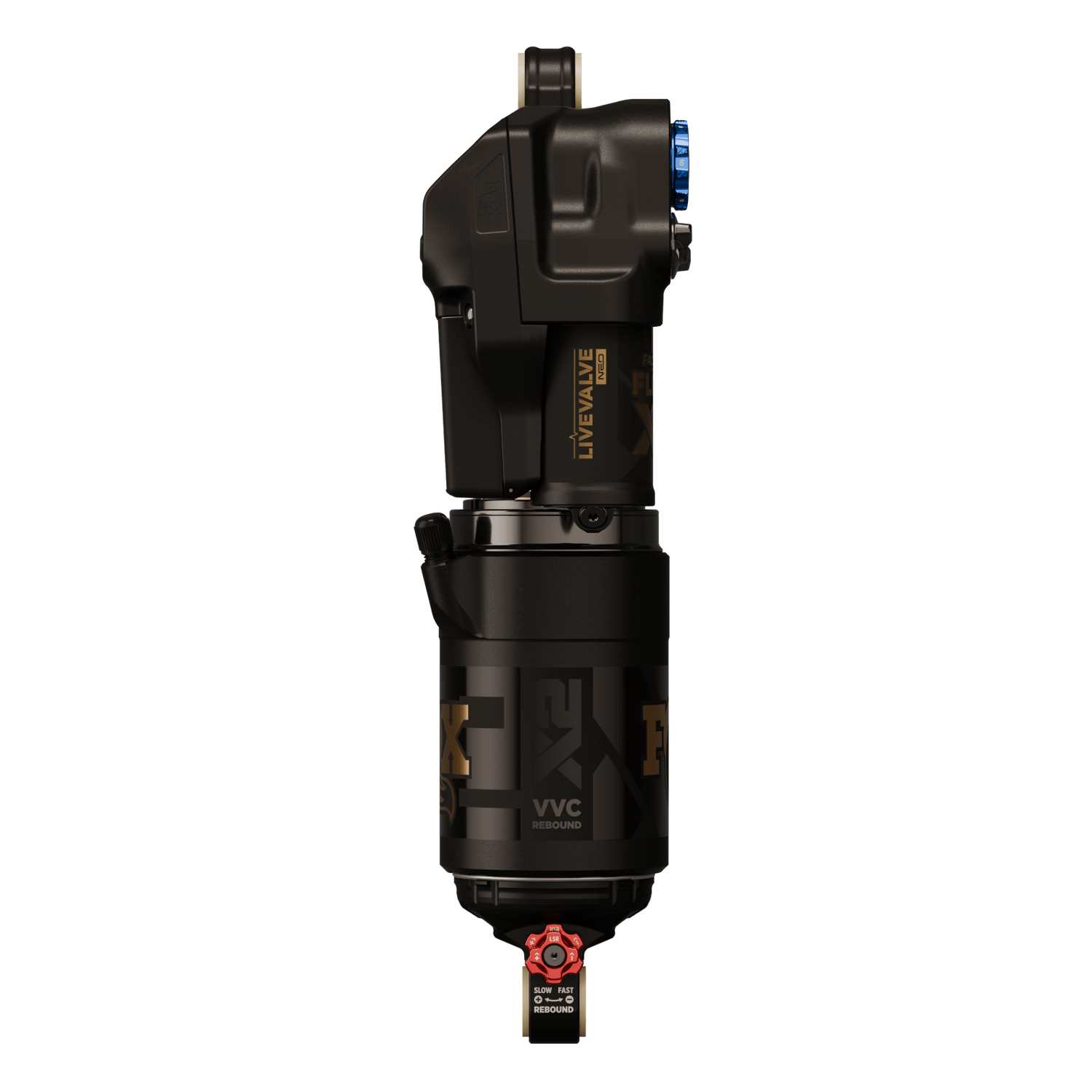

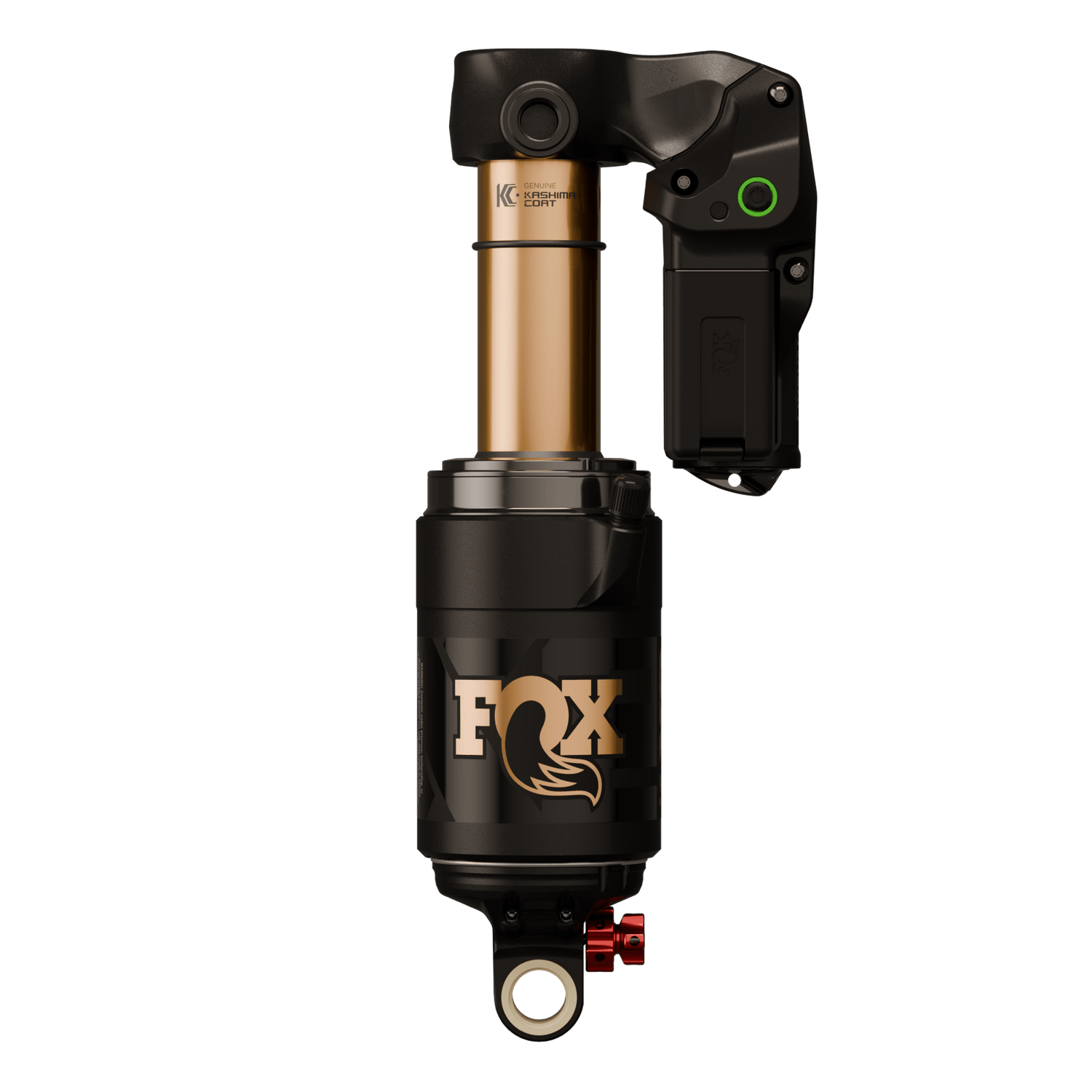

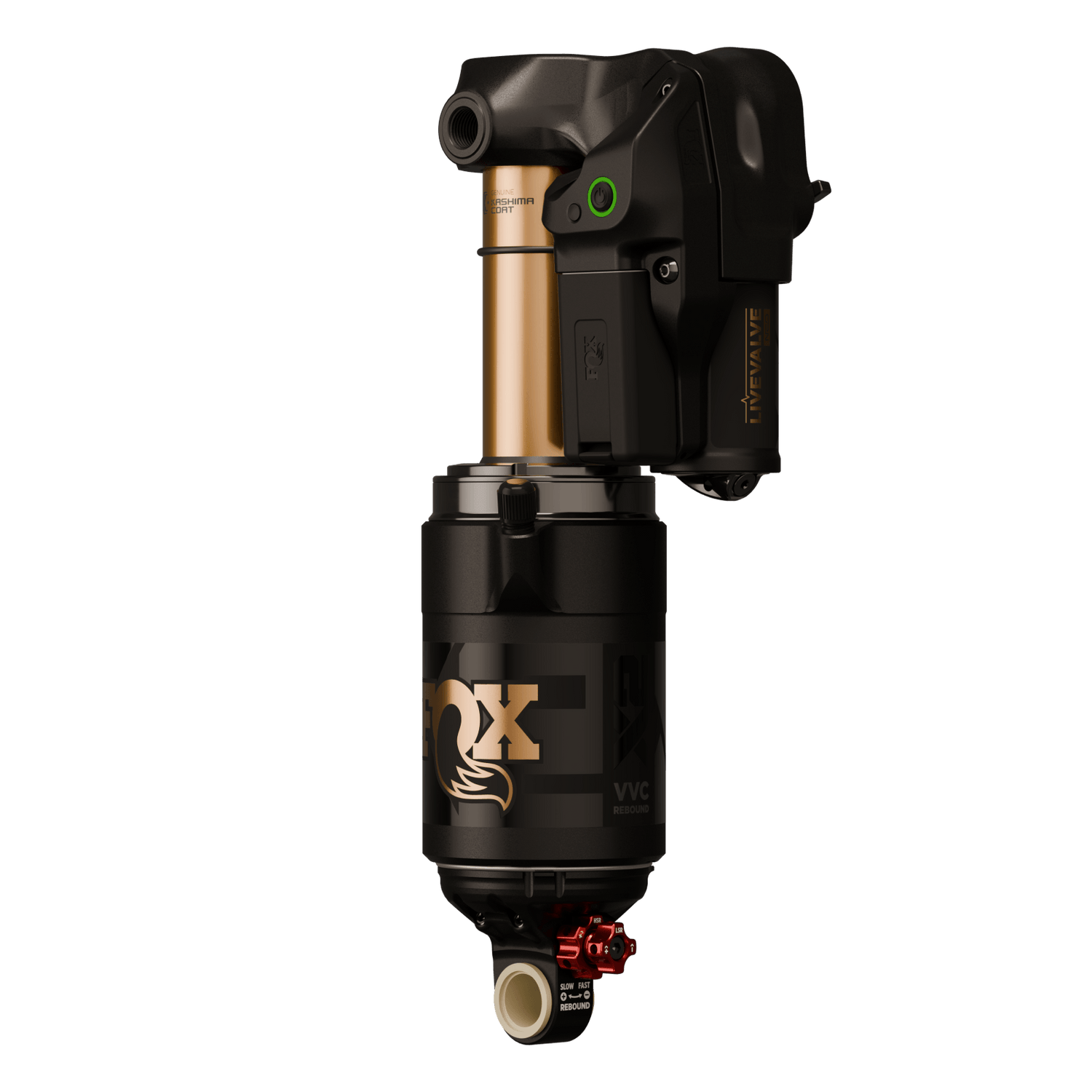

Fox Factory FLOAT X2 Live Valve Neo Trunnion Rear Shock 2027

The FOX FLOAT X2 Live Valve Neo is the most tunable gravity air shock FOX builds — now smarter, faster, and fully wireless. With a monotube body for greater durability and the speed-inducing benefits of Live Valve Neo, the FLOAT X2 firms and opens the compression circuit based on real-time trail data in 1/70th of a second. Gravity racing just got faster.

Live Valve Neo harnesses speed and efficiency in every moment on the trail — firm when you need it, plush when you want it.

How Live Valve Neo Works

Live Valve Neo reads terrain inputs 400 times per second, with the Controller switching between firm and open compression in 1/70th of a second — well below the threshold of human reaction. That means open, active damping over chatter, and instant firmness for pumps, pedalling, and big hits. The platform is fully wireless and runs on a rechargeable battery shared across every Neo product.

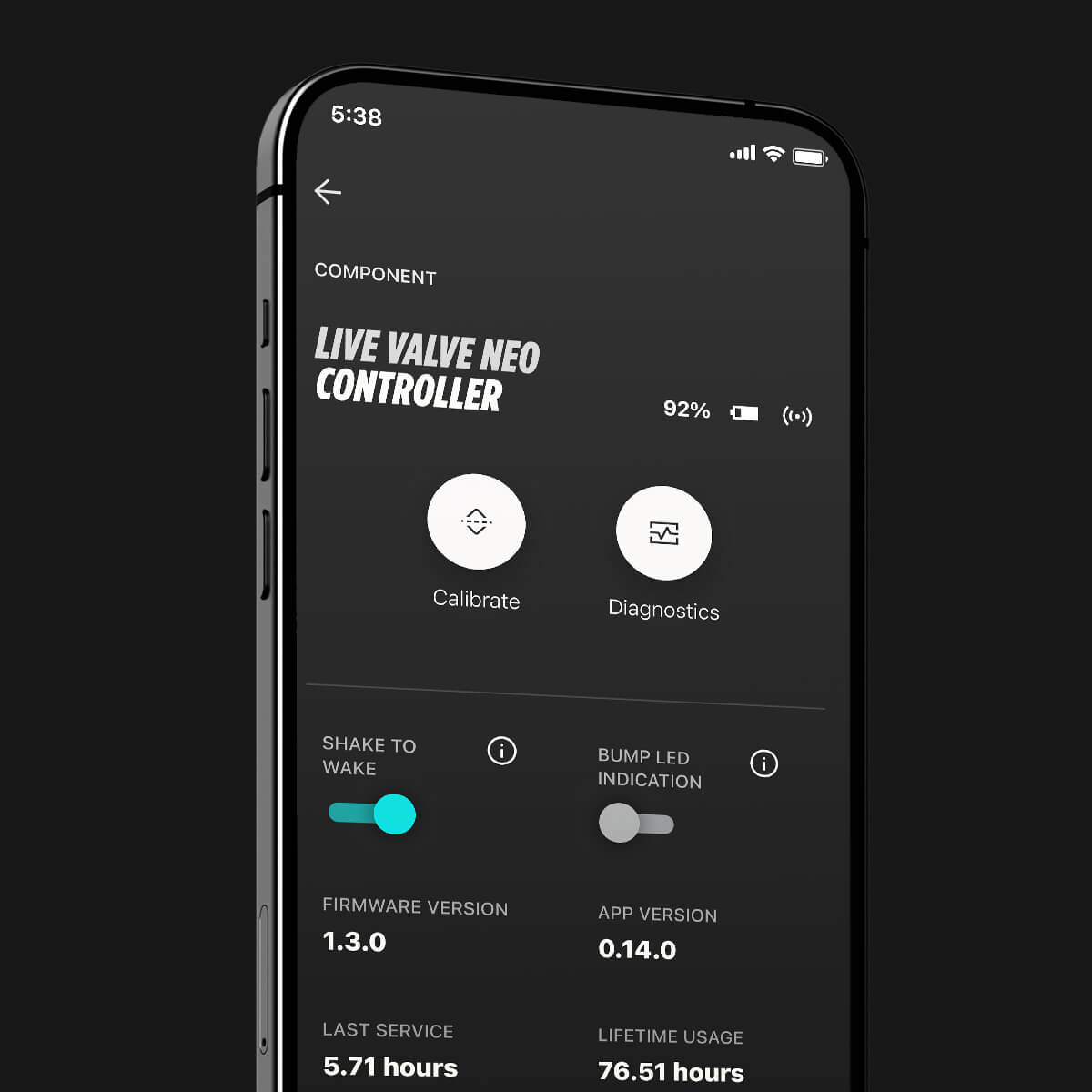

Optimise With the FOX Bike App

The FOX Bike App is your hub for all Neo components. Monitor battery levels, download and engage Live Valve Neo Tunes, run easy setup guides, and track suspension service intervals — all from your phone. Available on the Apple App Store and Google Play Store.

Key Features

• Wireless Live Valve Neo electronic compression control
• Pressure Balanced Monotube body for GRIP X2 fork-damper-level performance
• Larger 1/2" diameter shaft for increased strength and durability
• 1cc-increment air volume adjustment (max 350 psi) for ultra-precise spring tuning
• Updated Variable Valve Control (VVC) on high-speed rebound
• 3-way adjustable: high-speed rebound, low-speed rebound, low-speed compression
• 7-click firm-mode adjuster, 11-click low-speed compression
• Tool-free rebound and compression adjusters
• Trunnion and standard eyelet options
• Parallel reservoir orientation available on select sizes for frame clearance
• FACTORY series with Kashima upper tube
• 750g claimed weight (210 x 55mm)

Who It's For

Enduro racers and aggressive trail riders on 150–180mm bikes who want the deepest tuneability and the most adaptive damping FOX makes.

Important: The FOX Live Valve Neo Kit (sensors, Controller, battery, and mounting hardware) is sold separately and is required for the shock to function as intended.
