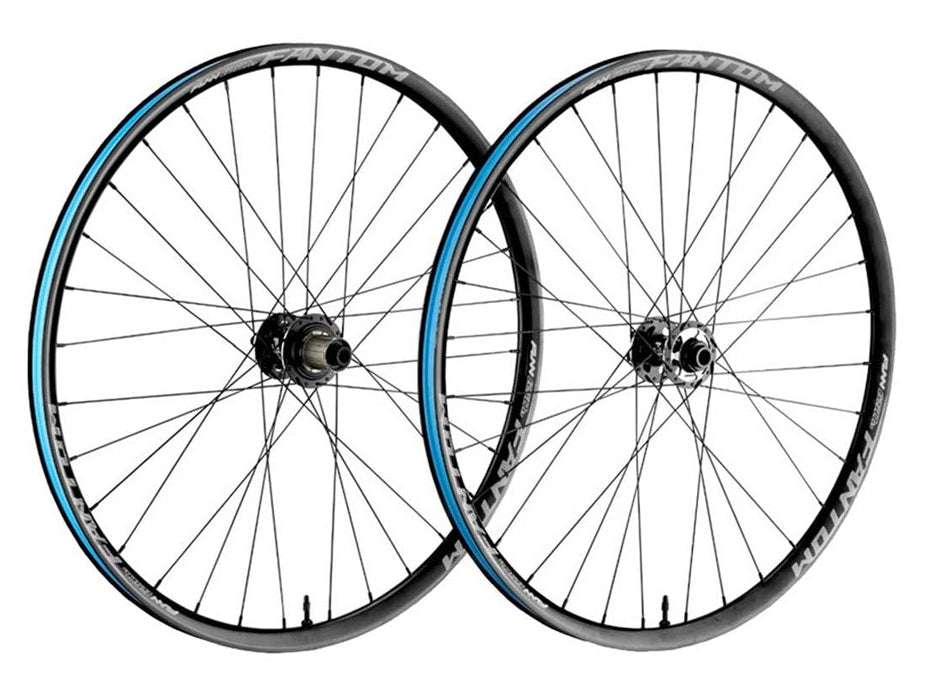

Funn Fantom AM40 27.5" Wheelset 35mm 32H 6-Bolt F:110/15mm R:148/12mm
Funn Fantom AM40 27.5" Wheelset 35mm 32H 6-Bolt F:110/15mm R:148/12mm - XD is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping on orders over $120 (excludes some large/oversized items) AUS only.
$20 Flat rate Express Shipping option available for non-bulky items. Usually delivered the next business day (Metro Areas) AUS only.
Same Day Dispatch on orders before 2pm (excludes supplier stock).
Delivery times will vary from 2-5 business days for metro areas and 7-14 business days for rural and remote areas.
Please see our full Shipping Policy here
Bombproof and lightning-fast wheels. (XC / Trail / Enduro - Not suited to DH use)
Built for aggressive trail and enduro pursuits, the Fantom AM40 delivers a refined balance of nimbleness and stability. The 35mm external rim profile with 30mm internal width optimizes cornering grip while maintaining efficient rolling characteristics. Pairing proprietary Funn hubs with matching rims, this wheelset achieves a lightweight construction without compromising durability across technical terrain. Available in 29" sizing with 32-hole configuration and modern boost spacing (110/15mm front, 148/12mm rear), it's engineered for riders demanding versatility from trail to enduro applications.
Engineered for performance, the Fantom AM40 features precision-machined AL6061 hubs with a rapid 6-pawl, 102-tooth engagement system for responsive power transfer. The lightweight AL6066 rim utilizes welded construction and sandblasted black anodizing for durability and aesthetics. Tubeless-ready design comes complete with rim tape and valves pre-installed, eliminating setup complexity and enabling lower pressures for enhanced traction and compliance on technical terrain.
KEY FEATURES
| Intended use | Trail/Enduro |
| Tubeless-ready | Supplied with tubeless tape and 2 x valves |
| Available sizes | 27.5″ | 29″ |
| Weight | 2075g (Boost) | 2145g (Boost) |
| Spoke count | Front 32H Rear 32H |
Front 32H Rear 32H |
Funn Fantom Rim
| Valve standards | Presta |
| Axle standard front | 15x110mm |
| Axle standard rear | 12x148mm |
| Rim width external | 40mm |
| Rim width internal | 35mm |
| Rim depth | 23mm |
| Rim eyelet | No |
| Rim material | Welded 6066 Alloy |
| Finish | Sandblasted Anodized Black |
| ETRTO | 584×40 | 622×40 |
| ERD | 554.5mm | 592mm |

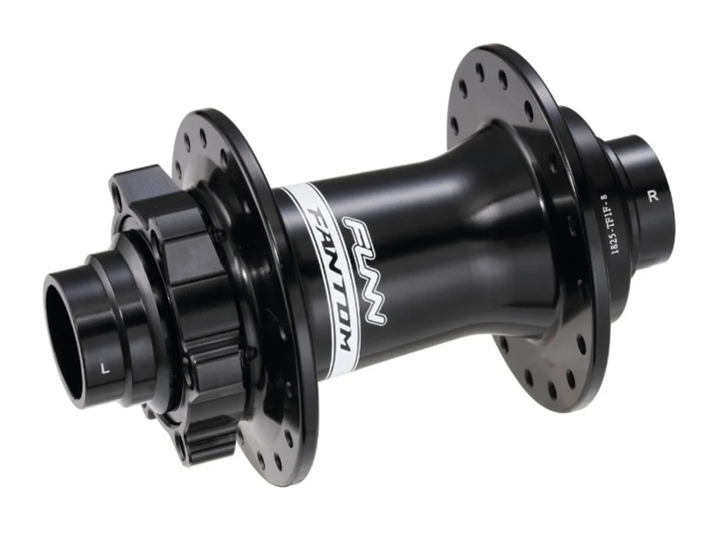

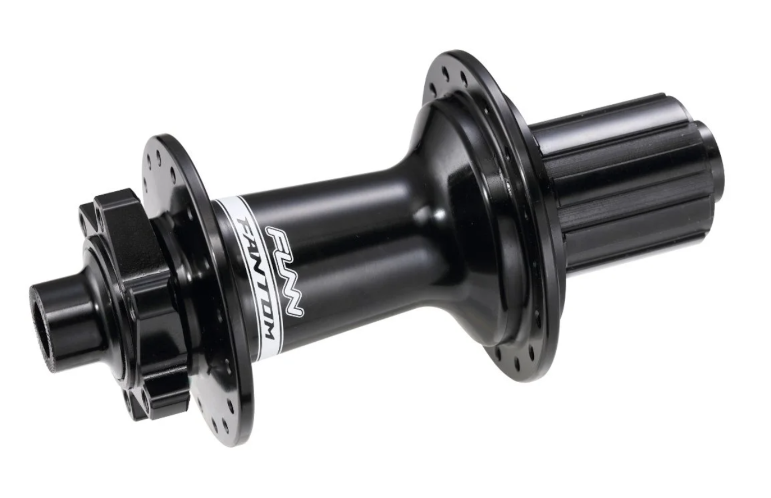

Funn Fantom Hub
| Engagement | Fantom 102T quick engagement |
| Cassette body | Shimano HG / SRAM XD / Shimano Micro Spline |
| Hub body | 6061 Alloy |
| Compatibility | Cassette body is convertible between Shimano and SRAM standards. |
Spokes
| Butting | Double-butted |
| Spoke count | 32h each wheel |
| Nipple | Brass |
