K-Edge Integrated Handlebar System Mount For Garmin - Combo

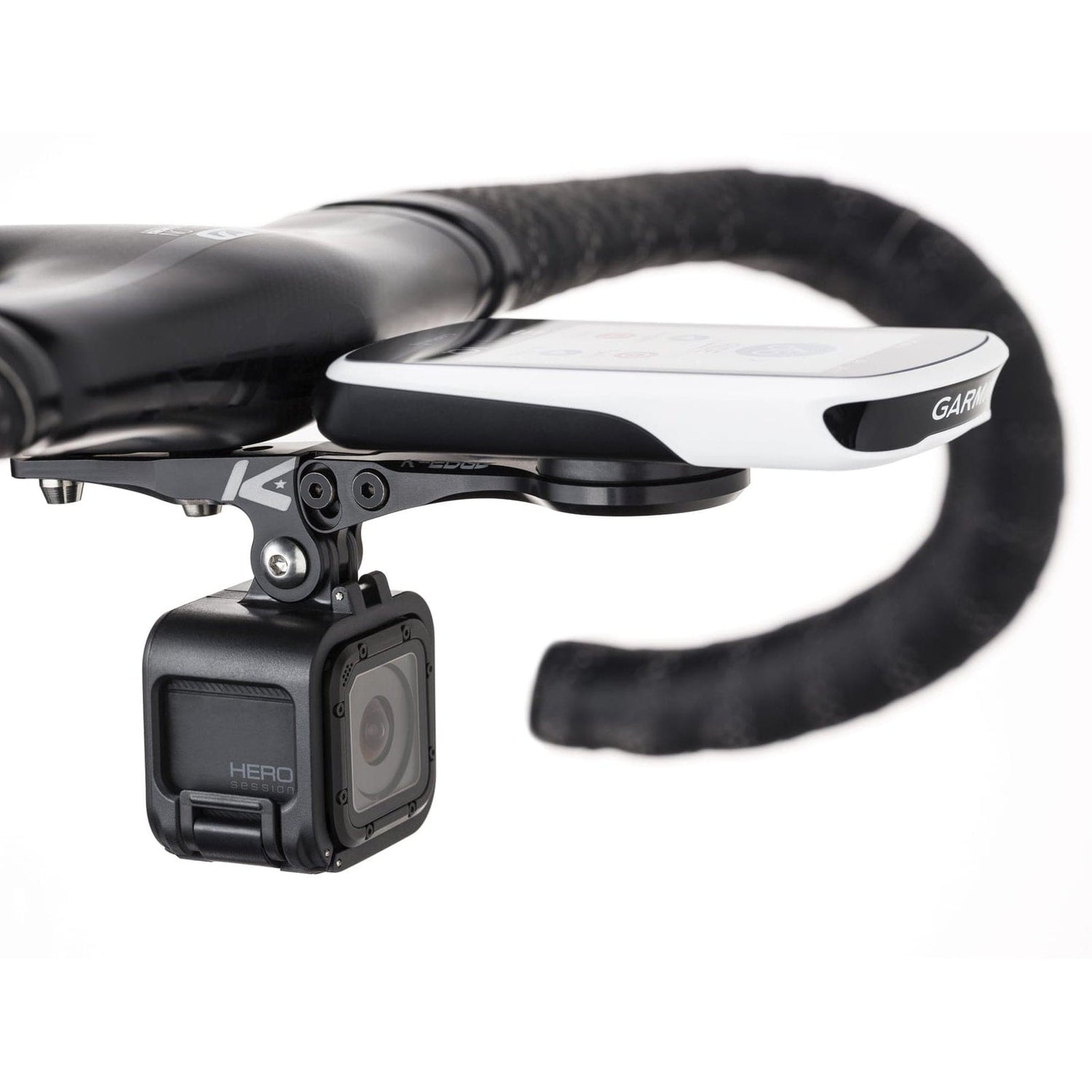

The ultimate one-piece bar/stem systems call for an elite-level mount that positions your computer out-front and your light or camera is hidden underneath and aero. Rock-solid camera mount position improves video quality by removing camera shake.

All IHS mounts must be installed using one of the three-round screw holes AND the elongated mounting slot (see installation instructions). Failure to do so will void the lifetime warranty.

Attributes (specs):

• For Integrated Handlebar (one piece) bar/stem
• Pro-level mount with -7 degree articulation for custom computer positioning
• Lifetime warranty. CNC Machined. Black Anodized
• GARMIN-approved replaceable computer insert protects computer tabs
• Combo- Computer and GoPro style camera/light compatible
• M5 hardware included. If a smaller bolt is required, use an 8.4mm washer to ensure a secure fit.
• Made in House. Boise, Idaho USA

Compatibility:

• All Garmin cycling computers.
• Most Canyon integrated handlebar-stem systems (not compatible with Canyon H36 integrated bar).  **M4x20mm 0.7 thread pitch hardware not included.**
• Please see Canyon Fit Kit if needed
• Combo Adapter (K13-580-BLK) is NOT compatible and will void the lifetime warranty.
• NOT COMPATIBLE WITH: SHIMANO PRO VIBE EVO, CERVELO WISHBONE SYSTEM (ABO8, CS028 V-STEM), VENTUM INTEGRATED HANDLEBARS, COLNAGO R41 STEM, VISION METRON 5D, BLACK INC. INTEGRATED HANDLEBARS, BMC ICS HANDLEBARS/STEMS.

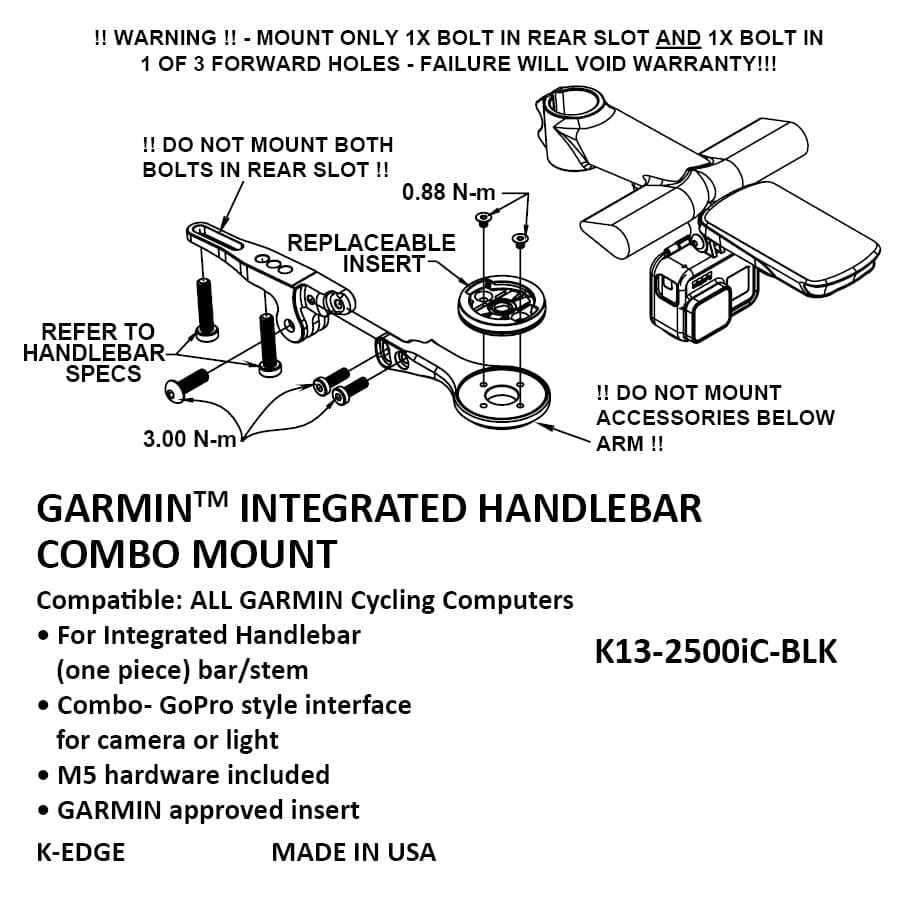

Installation:

• All IHS mounts must be installed using one of the three-round screw holes AND the elongated mounting slot. Failure to do so will void the lifetime warranty.
• All IHS mounts must be directly mounted to the handlebar without the use of shims or adapters.
• Installation of an IHS mount in any orientation that is not following the above guidelines will void the K-EDGE lifetime warranty.
