K-Edge Integrated Handlebar System Mount For Wahoo

World Tour tested and proven.  The ultimate one-piece bar/stem systems call for an elite-level mount that positions your aero computer solidly and securely out front.

All IHS mounts must be installed using one of the three-round screw holes AND the elongated mounting slot (see installation instructions). Failure to do so will void the lifetime warranty.

Attributes (specs):

• For Integrated Handlebar (one piece) bar/stem
• Pro level mount with -7 degree articulation for custom computer positioning
• Lifetime warranty. CNC Machined. Black Anodized
• WAHOO approved replaceable computer insert protects computer tabs
• Not combo compatible (choose K13-2600iC mount for Combo use)
• M5 hardware included. If a smaller bolt is required, use an 8.4mm washer to ensure a secure fit.
• Made in House. Boise, Idaho USA

Compatibility:

• All Wahoo cycling computers
• NOT COMPATIBLE WITH: SHIMANO PRO VIBE EVO, CERVELO WISHBONE SYSTEM (ABO8, CS028 V-STEM), VENTUM INTEGRATED HANDLEBARS, COLNAGO R41 STEM, VISION METRON 5D, BLACK INC. INTEGRATED HANDLEBARS, BMC ICS HANDLEBARS/STEMS.

Technical

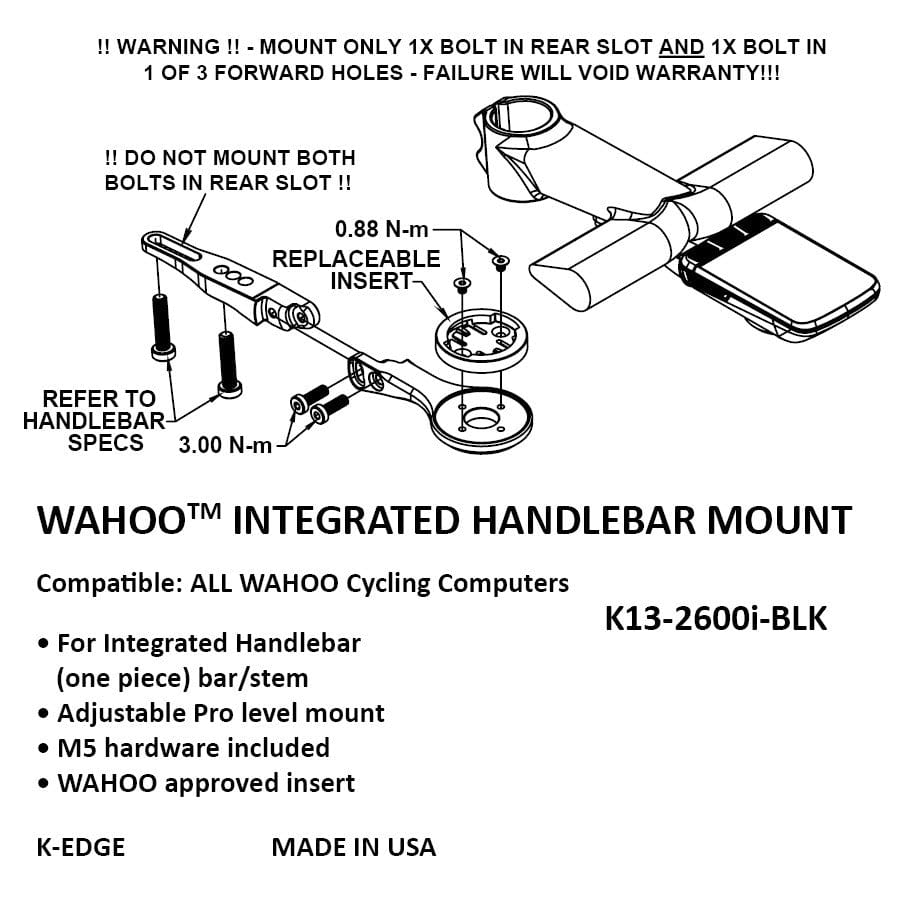

Installation:

• All IHS mounts must be installed using one of the three-round screw holes AND the elongated mounting slot. Failure to do so will void the lifetime warranty.
• All IHS mounts must be directly mounted to the handlebar without the use of shims or adapters.
• Installation of an IHS mount in any orientation that is not following the above guidelines will void the K-EDGE lifetime warranty.

We highly suggest you follow the recommendations in the Wahoo instructions that recommend use of the provided tether/leash.
