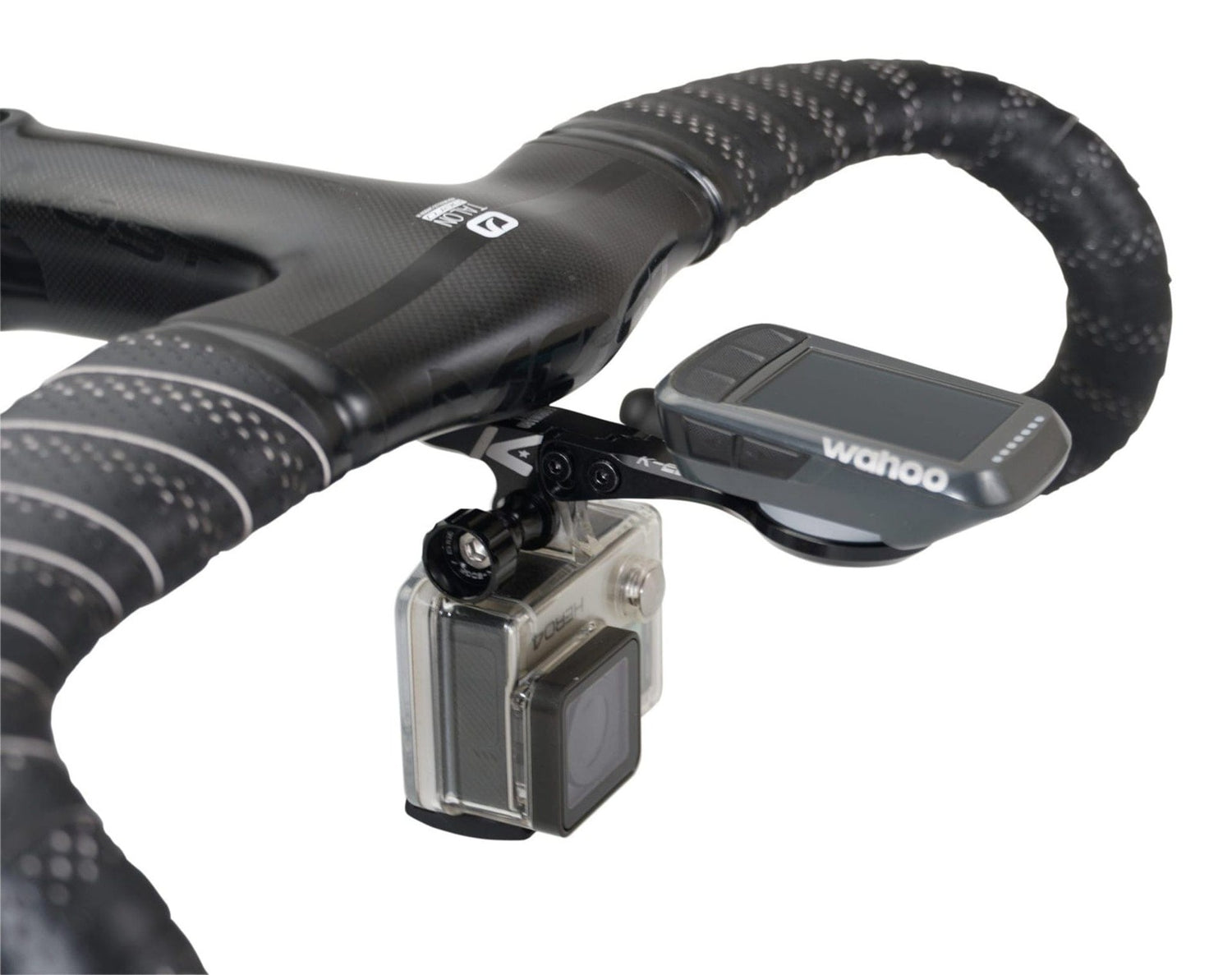

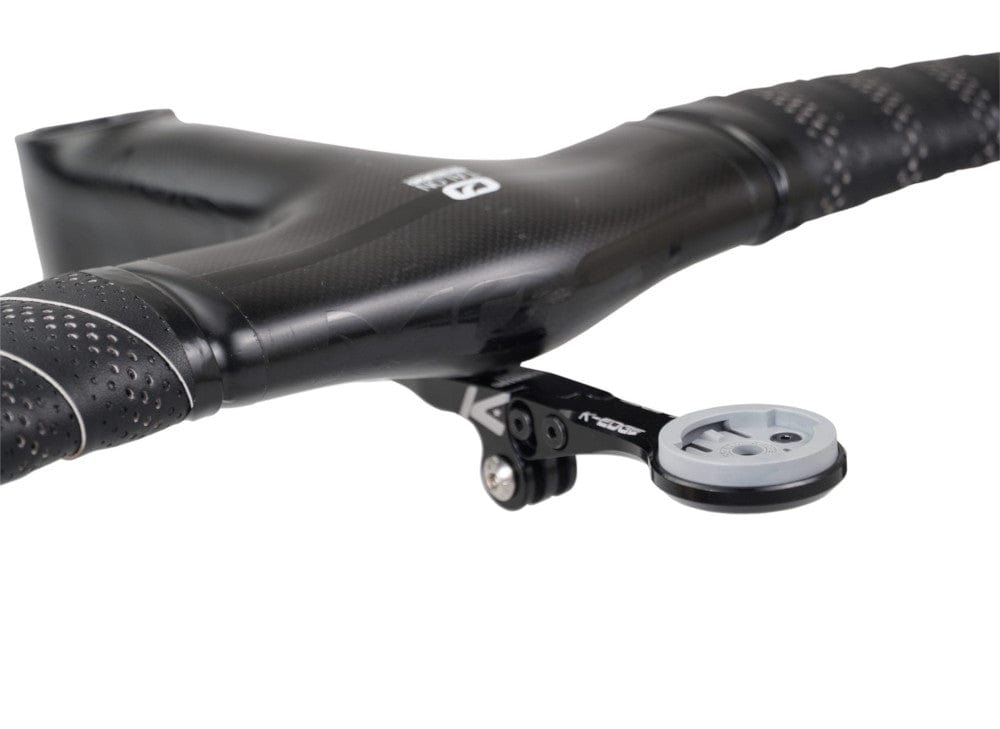

K-Edge Integrated Handlebar System Mount For Wahoo - Combo

The ultimate one-piece bar/stem systems call for an elite-level mount that positions your computer out-front and your light or camera hidden underneath and aero. Rock solid camera mount position improves video quality by removing camera shake.

All IHS mounts must be installed using one of the three-round screw holes AND the elongated mounting slot (see installation instructions). Failure to do so will void the lifetime warranty.

Attributes (specs):

• For Integrated Handlebar (one piece) bar/stem
• Pro level mount with -7 degree articulation for custom computer positioning
• Lifetime warranty. CNC Machined. Black Anodized
• Wahoo approved replaceable computer insert protects computer tabs
• Combo- Computer and GoPro style camera/light compatible
• M5 hardware included. If smaller bolt is required, use an 8.4mm washer to ensure a secure fit.
• Made in House. Boise, Idaho USA

Compatibility:

• All Wahoo cycling computers.
• Most Canyon integrated handlebar-stem systems (not compatible with Canyon H36 integrated bar).  **M4x20mm 0.7 thread pitch hardware not included.**
• Please see Canyon Fit Kit if necessary
• Combo Adapter (K13-580-BLK) is NOT compatible and will void lifetime warranty.
• NOT COMPATIBLE WITH: SHIMANO PRO VIBE EVO, CERVELO WISHBONE SYSTEM (ABO8, CS028 V-STEM), VENTUM INTEGRATED HANDLEBARS, COLNAGO R41 STEM, VISION METRON 5D, BLACK INC. INTEGRATED HANDLEBARS, BMC ICS HANDLEBARS/STEMS.

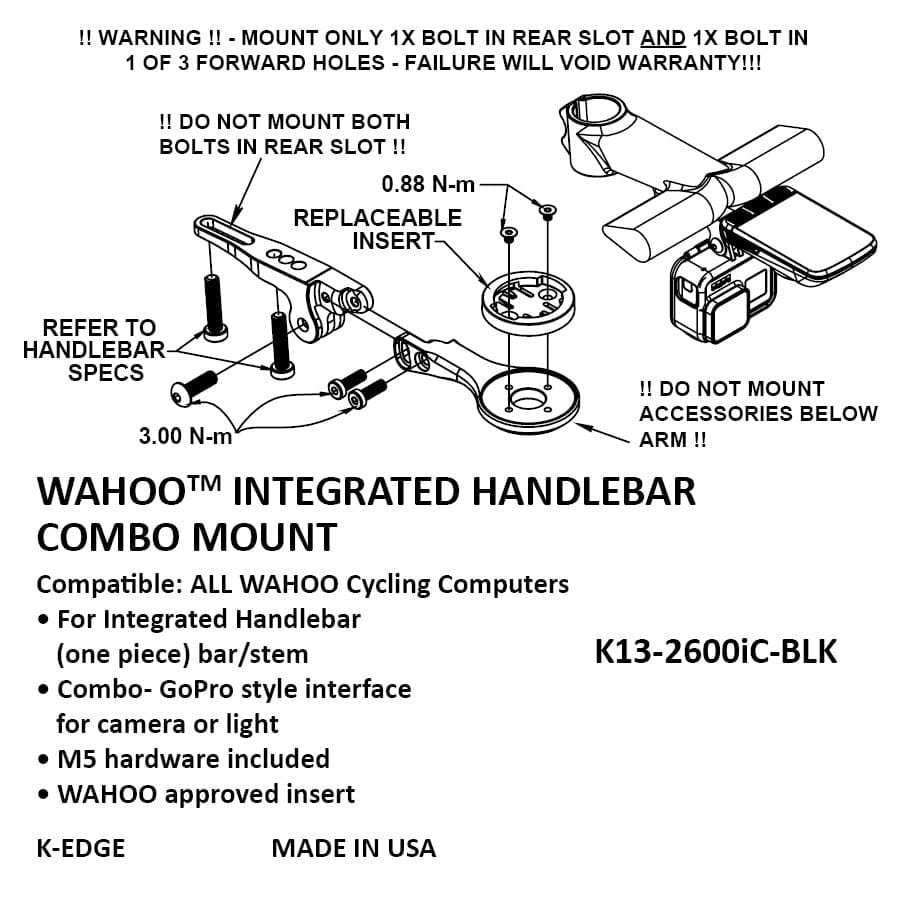

Installation:

• All IHS mounts must be installed using one of the three round screw holes AND the elongated mounting slot. Failure to do so will void the lifetime warranty.
• All IHS mounts must be directly mounted to the handlebar without the use of shims or adapters.
• Installation of an IHS mount in any orientation that is not following the above guidelines will void the K-EDGE lifetime warranty.
