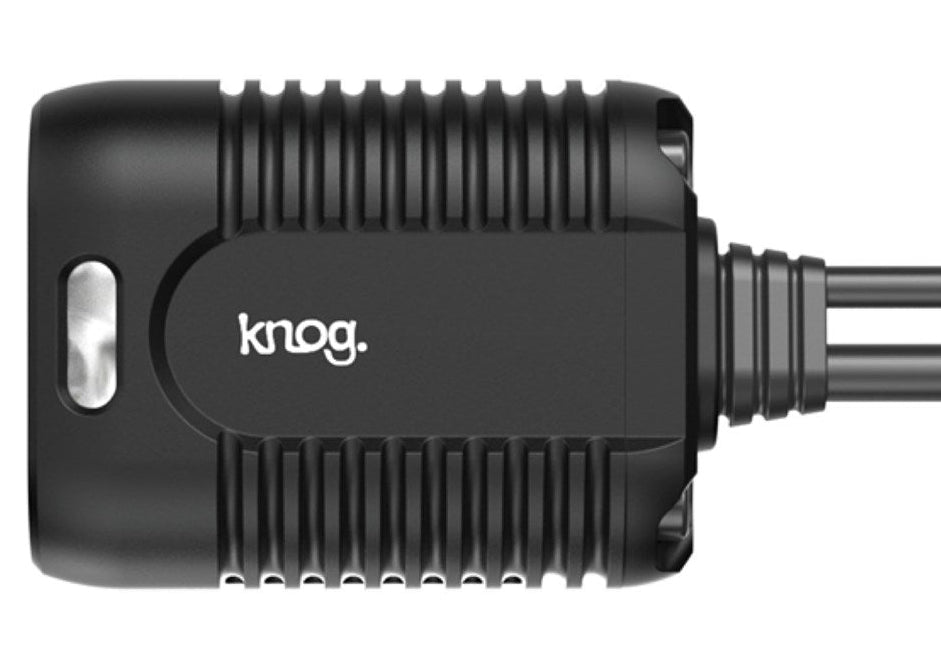

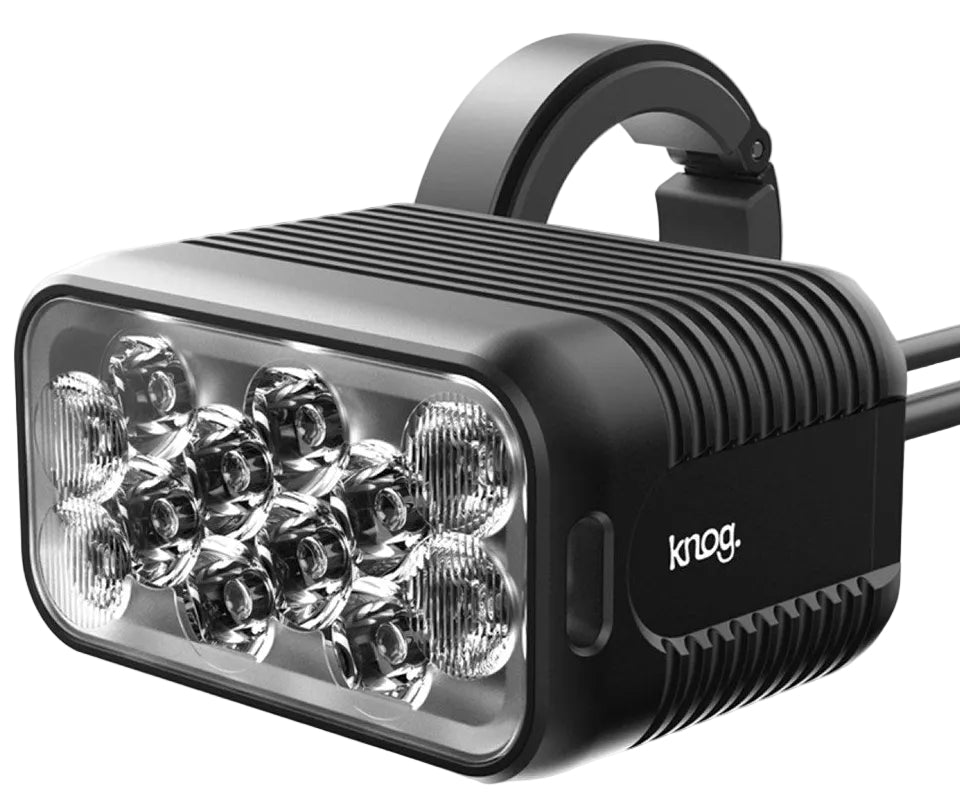

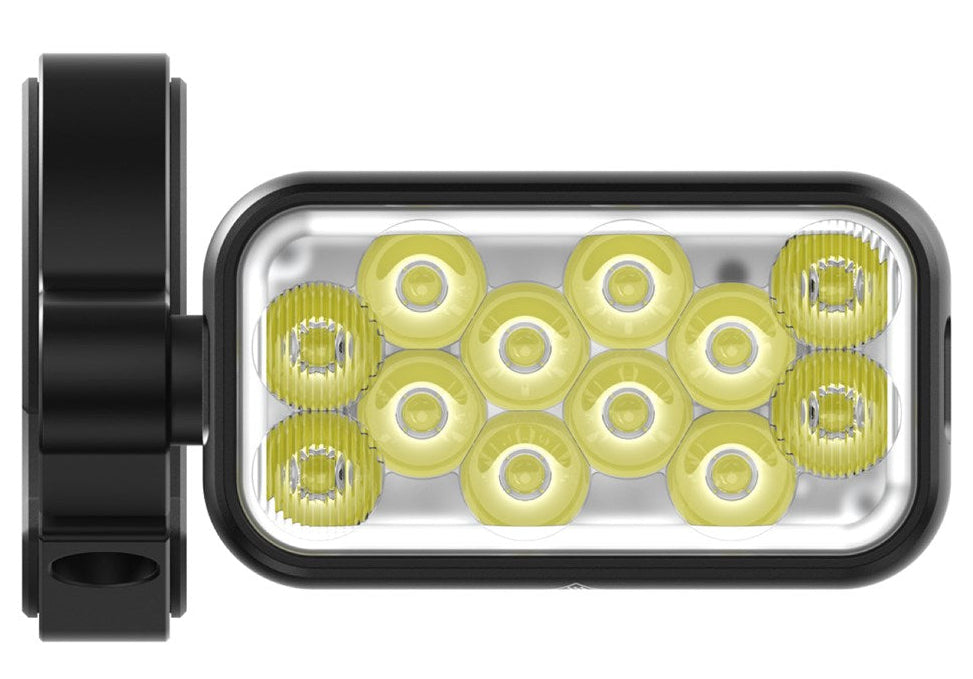

The Knog Blinder E 2300 represents premium lighting engineered specifically for e-Bike systems. Its array of 6 high-performance LEDs generates up to 1300 lumens, ensuring exceptional visibility across diverse riding scenarios. The integrated remote control grants seamless access to 6 distinct brightness modes, allowing riders to optimise output based on ambient conditions and terrain. This model integrates directly with your e-Bike's electrical system via hardwired installation, drawing power from the motor's output for reliable, maintenance-free operation. Purpose-built for riders who prioritise safety and performance.
KEY FEATURES
CNC machined single piece 6061 aluminium housing.

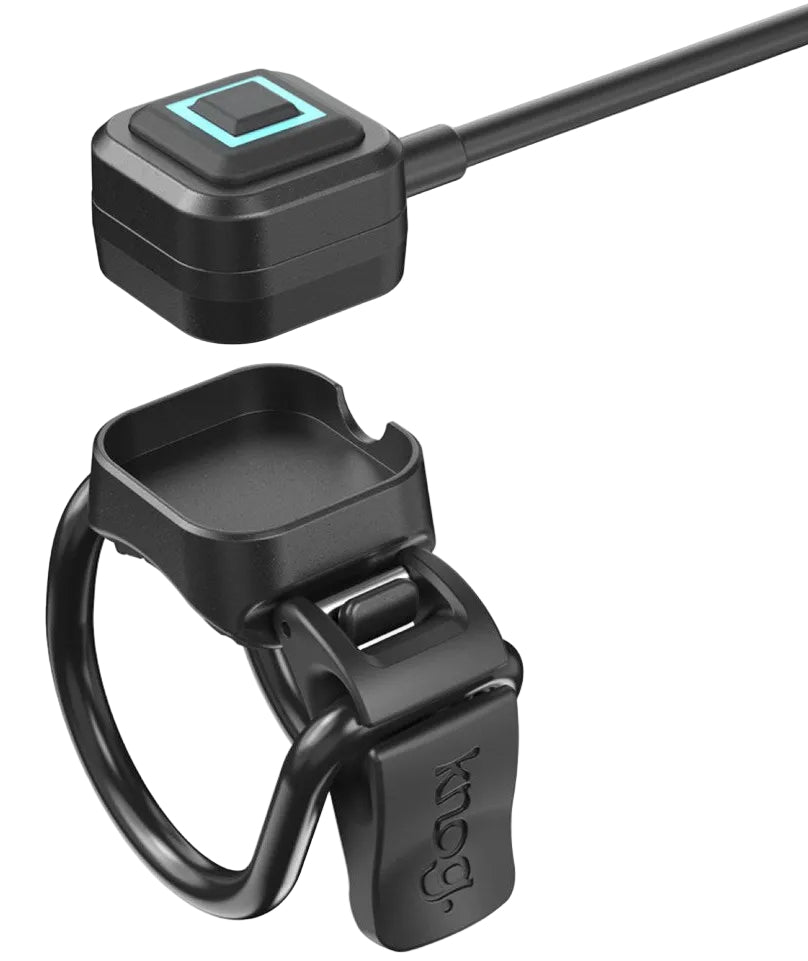

Silicon remote with mode indicator. Shines blue when in high mode.
Anodised black finish.
100% Water proof.
Side window allows light to be visible perpendicular to travel for added safety.
Unique chassis cooling fin design helps regulate heat.
Adjustable mounting position

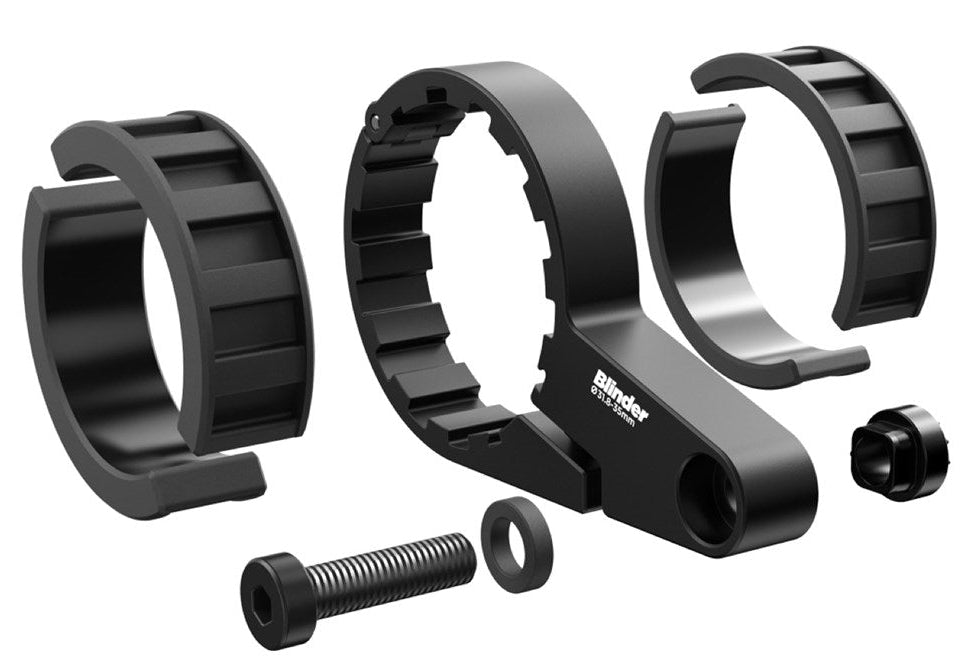

Anti-vibration mounting. The mount incorporates silicon shims to provide rigidity to the light.
Weight: 125g
Size: Light 36mm H x 57mm W x 32mm L
Power Scaling Mode The Knog Blinder E 2300 incorporates intelligent power scaling technology to accommodate the varying electrical specifications of different e-Bike systems. This adaptive feature enables you to calibrate the light's maximum power draw—selecting from 6W, 9W, 12W, or 14W settings—ensuring compatibility with your specific e-Bike's power delivery capabilities. This flexibility eliminates compatibility concerns and optimises performance relative to your system's output, delivering consistent, reliable illumination regardless of your e-Bike's brand or model.
SPECIFICATIONS
MODE
LUMENS
High beam
2300 at 20w
Medium beam
1000
Low beam
350
Pulse Flash
900
Strobe Flash
900
Eco Flash
650

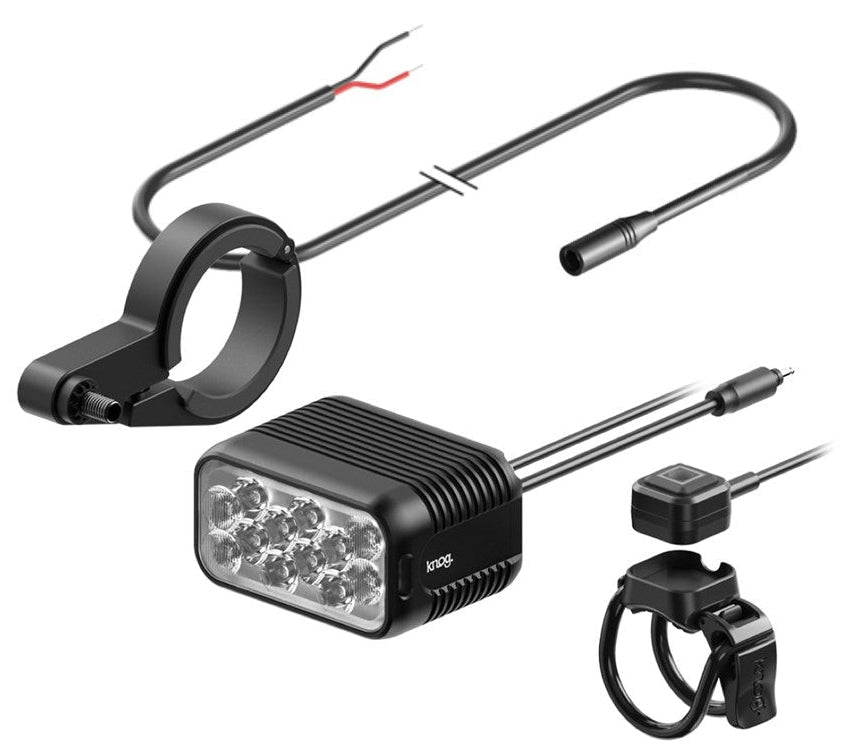

WHAT'S INCLUDED
Blinder E 2300
e-Bike cable
Bar mount
Shims 31.8/35mm
Hex key
Torx key
Product codes
Knog part number: 13332
