ROCKY MOUNTAIN BIKES

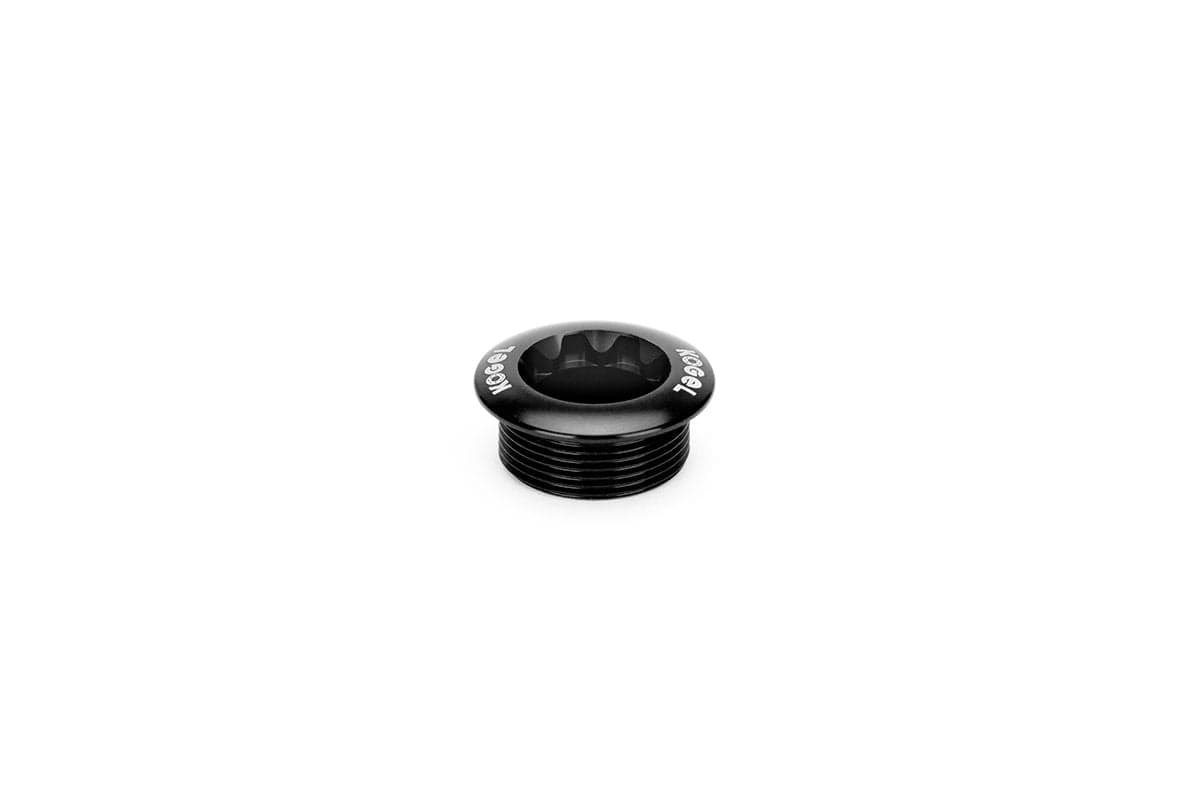

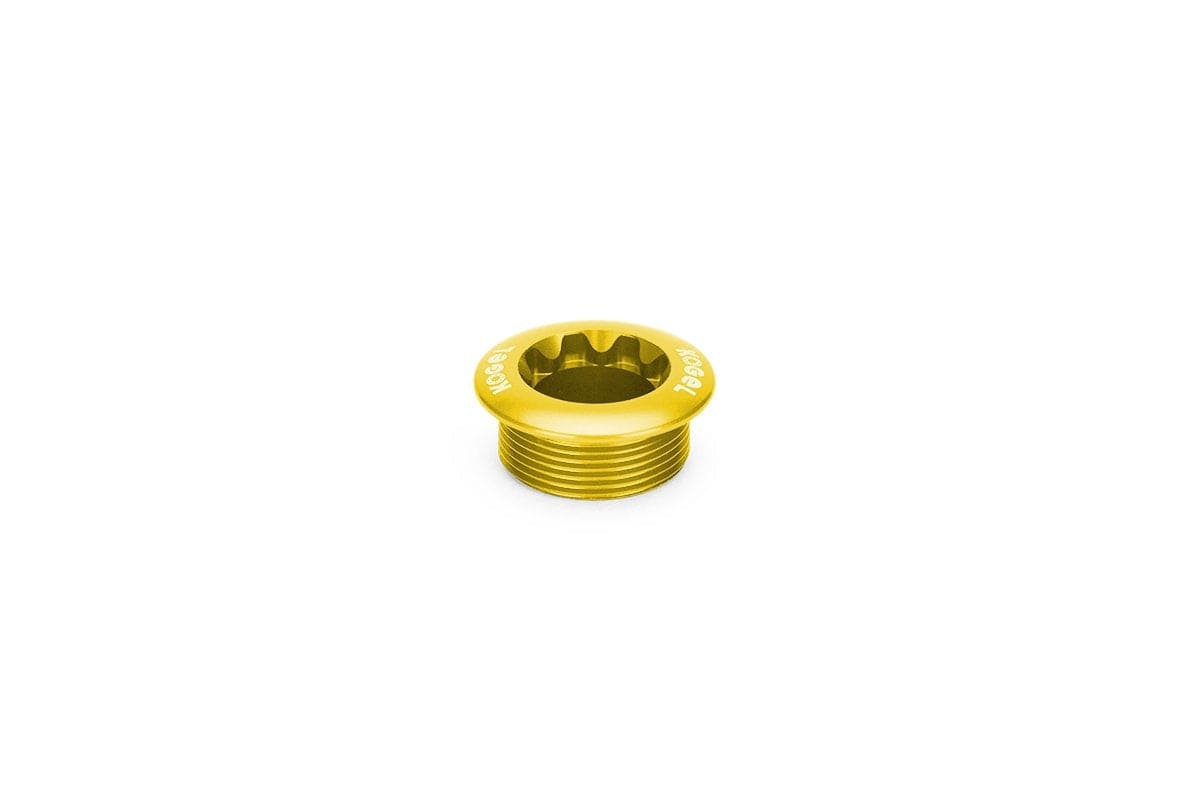

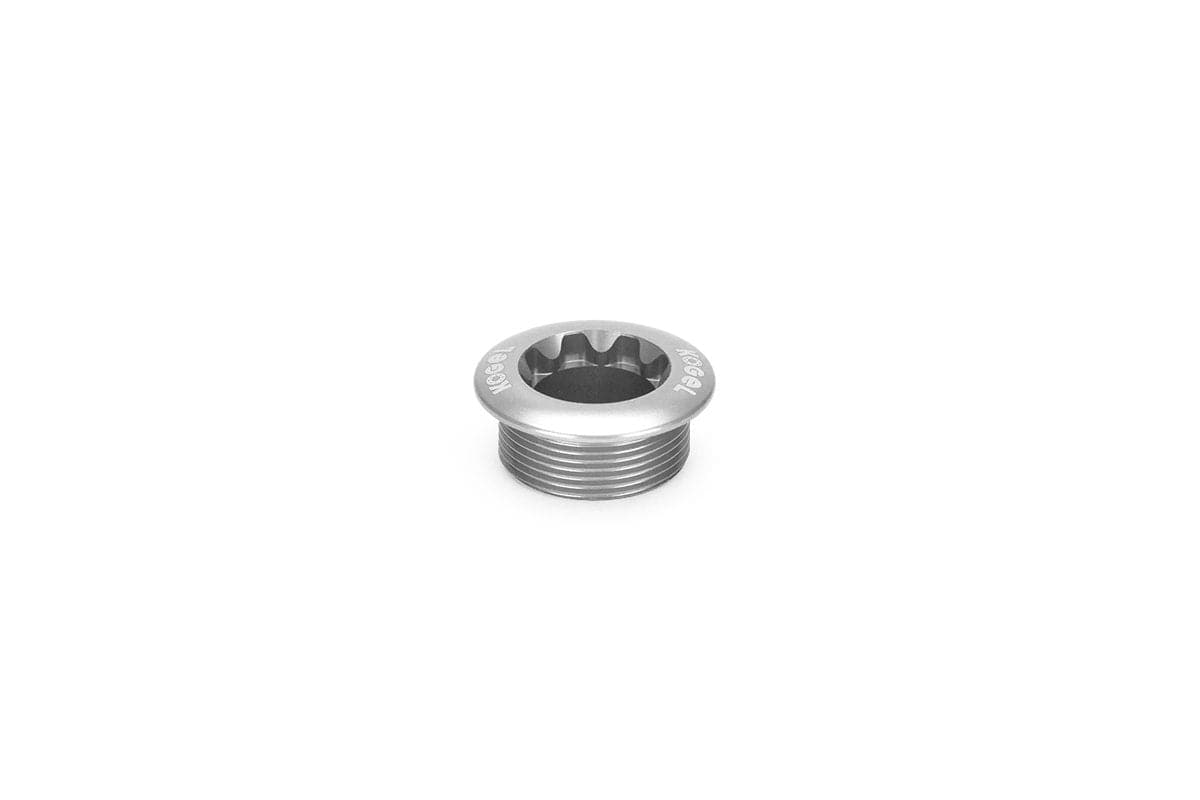

KOGEL Shimano Crank Arm Fixing Bolt - Short

$44.99
Tax included Shipping calculated at checkout.

Colour

Delivery and Shipping

$10 Flat Rate Shipping (excludes some large/oversized items) AUS only.

$15 Flat rate Express Shipping option available for non-bulky items. Usually delivered the next business day (Metro Areas) AUS only.

Same Day Dispatch on orders before 3pm (excludes bikes).

Delivery times will vary from 2-5 business days for metro areas and 7-14 business days for rural and remote areas.

Seen a lower price? Contact us.

Looking for another opportunity to increase the durability of your drivetrain and customize the look of your Shimano crankset?

Kogel's Shimano crank arm fixing bolt is here to help keep the crank arm bolts from backing out.

Made from the T6061-T6 aluminium alloy, our Shimano fixing bolt adjusts the side load on the bearings and holds the arm in place while you tighten up the crank cinch bolts to the proper torque spec.

Installation

Thread the fixing bolt into the crank arm, and adjust it until all the lateral play in the crank arm and spindle has disappeared. Back off the bolt a quarter or half turn to make sure there is no sideload on the bottom bracket bearings.

You're looking for the sweet spot between not being able to rock the cranks back and forth in the bottom bracket and not torquing it down tightly, which would cause friction and premature wear in the bearings. After this, tighten down the cinch bolts to the recommended torque, alternating between the two bolts.

Installing requires Shimano II Crank Arm Bolt Tool TL-FC16 or similar and a torque wrench with 5mm bit for installation and removal

Choosing the Correct Length

Short: compatible with current generation HollowTech II off-road cranksets (GRX, XT, SLX)
When in doubt, just remove your current bolt and visually compare it to the thread length of the preload bolts using the product images.
