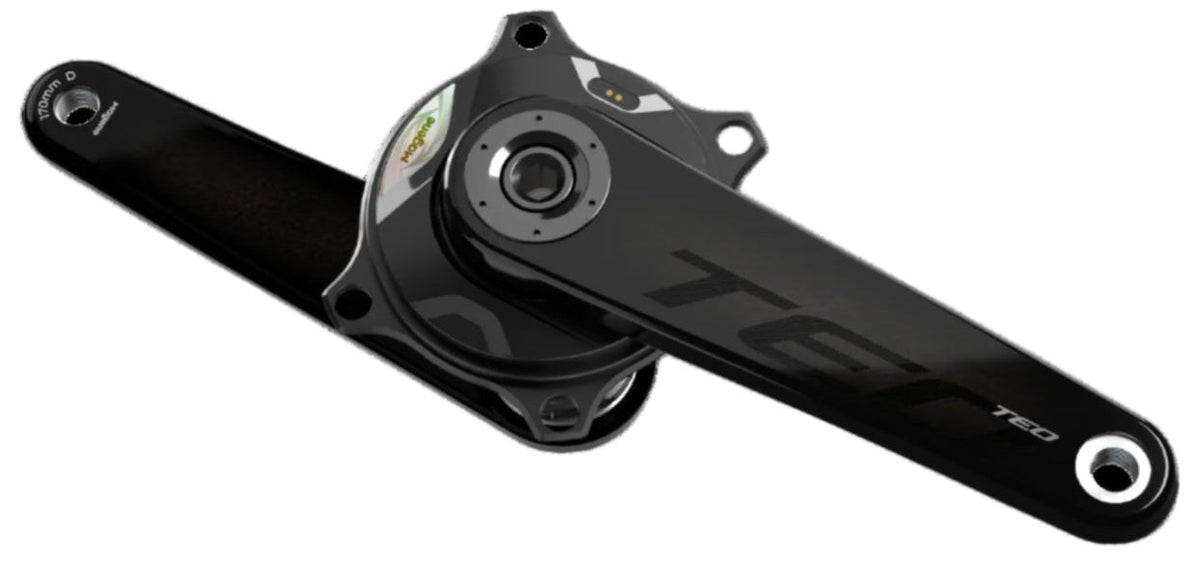

Magene TEO P515 Base Carbon Power Meter

BORN TO RACE:

At the finish line, victories are measured in millimetres. TEO, engineered to push limits, empowering pro cyclists to achieve ground-breaking performance at races.

Crafted from premium Hi-MOD carbon fibre, the TEO carbon crank features as innovative dual-channel high pressure forming process, which minimises weight to the greatest extent. With a sleek profile & an ultra-lightweight 425g¹, the MAGENE TEO Power Meter Crankset delivers exceptional performance, helping you break away in competitive races.

±1% POWER ACCURACY:

Capture your every effort accurately.  The PES P515 power meter employs high precision strain gauges & acceleration sensors. Combined with built-in intelligent temperature compensation algorithms, it can provide precise & reliable power data anytime & anywhere, even when the environment changes constantly. Extensively tested in harsh environments with highly demanded standards, with each strain gauge undergoing stress release. PES P515 guarantees a ±1% power accuracy, never letting you spend your effort in vain.

ULTRA HIGH STIFNESS, UNCOMPROMISING PEDALLING RIGIDITY:

The TEO carbon cranks undergo compression testing, with a force of 1,500N (~153Kg) applied to each pedal side (35mm position) to measure displacement. the test shows the TEO Carbon Crankset exhibit minimal deformation, demonstrating exceptional stiffness. Rigorously tested, the TEO Carbon Cranks maintain am outstanding stiffness-to-weight ratio without sacrificing ultra-lightweight performance. Every pedal stroke delivers unwavering confidence & your power output is never diminished.

LONG BATTERY LIFE:

Support your training, day & night. The MAGENE P515 Spider-Based Power Meter applies a new circuit designed to effectively improve power consumption efficiency & reduce power loss during cycling. From fully charged, it can support you for up to 330hours² of long-distance riding & training, effortlessly conquering endurance challenges.

COMPLETE POWER METER CRANKSET:

MAGENE TEO Power Meter Crankset includes the MAGENE P515 Spider-Based Power Meter & the MAGENE TEO Carbon Crankset. This bundle eliminates confusion around choosing compatible components. Providing consistent & reliable performance without the worry around interference problems potentially caused by third party products.

Model: TEO P515 Power Meter Crankset
Weight: 425±10g (170mm)
Lengths: 160,165,170,172.5,175mm
Power accuracy: ±1%
Spindle: 29mm
Chainring Standard: 4Bolt 110BCD
Chainline: 44.25mm
Q-Factor: 148mm
Power Range: 0~2500w
Cadence Range: 20~240 RPM
Data Function: Power
Cadence: Left-Right balance
Pedalling Smoothness
Calibration: Automatic
Wireless Protocol: ANT+
Bluetooth
Waterproof grade: IPX7
Working Temperature: -20°C/50°C
Battery life: 330 hours
Charging: Magnetic charging

What’s in the box:
P515 Spider based power meter
TEO carbon crank
Magnetic charging cable
Stickers
Quick start guide
Lock ring for conversion kit
