Power2Max Ngeco Road Power Meter

WARNING

This device includes a Button/Coin Battery containing lithium that poses significant health risks if ingested or inserted into body cavities. Lithium batteries can cause critical or lethal injuries within as little as 2 hours post-exposure. Store batteries securely away from children. Immediately consult medical professionals if ingestion or insertion is suspected.

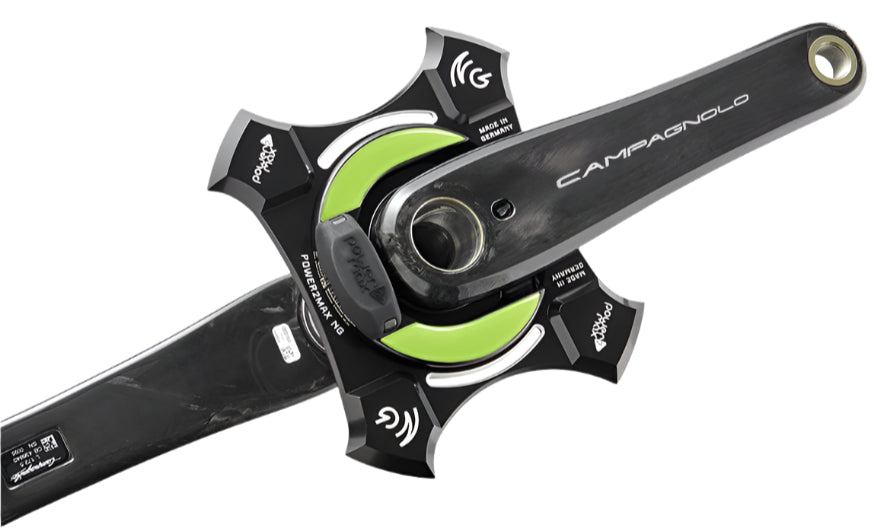

The NGeco Campagnolo power meter package delivers precision performance monitoring integrated with Campagnolo 2x12 carbon crankarms. This comprehensive set includes the advanced NGeco power meter Spider, premium Campagnolo power meter crank arms (selectable in 170mm, 172.5mm, or 175mm lengths), and the distinctive NG colored decal—the complete solution for cyclists demanding accurate power measurement with Campagnolo componentry.

Please note:

• Make sure to use the specific 2x12 chainrings for your drivetrain.
• For the power meter to operate at optimal range, it is required that only the crank arms supplied as part of this set be used!!!
• To mount the right crankarm to the powermeter you will need the lockring tool for Campagnolo cranks (ZB-SAX-WZCAM-K01.0000)

 SPECIFICATIONS

Physical

• Weight: 636g
• Crank Axle Diameter: 24mm
• Chainline: 43.5mm
• Fitment options (BB): BB30, PF30, BB386EVO, BB86, BB90, BBRIGHT, BSA68, ITA70
• Water Resistant: yes

Battery

• Type: CR2450 coin cell (replaceable)
• Life: up to 300 hrs

Data

• Metrics: power, cadence
• Power Accuracy:  +/- 2%
• Torque: 0 - 250 Nm
• Power: 10 - 2999 W
• Cadence: 20 - 250 RPM
• Data Transmission: ANT+, BLE
• Active temperature compensation: yes
• Calibration: automatic zero-point adjustment (no user calibration required!)

Compatibility

• Installation: to mount the right crankarm to the powermeter you will need the lockring tool for Campagnolo cranks (ZB-SAX-WZCAM-K01.0000)
• Fitment: recommend Loctite 243 or similar threadlocker
• BB shells are not included

Other

• Manufacturer's Warranty: 5 years (NG model) / 2 years (NGeco model)

INCLUDES

• Powermeter (inc. Crankset with crank spindle)
• Silicon cover
• USB Charging cable
• 2D decal
• Quickstart guide
