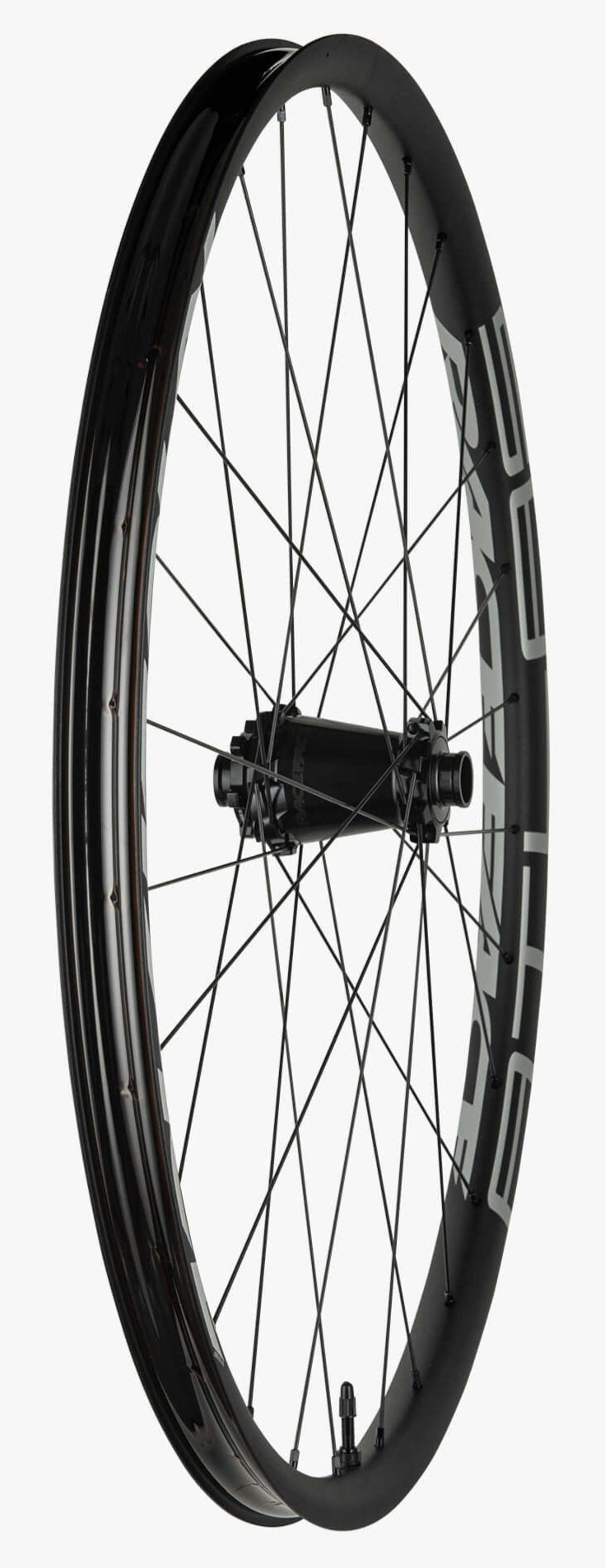

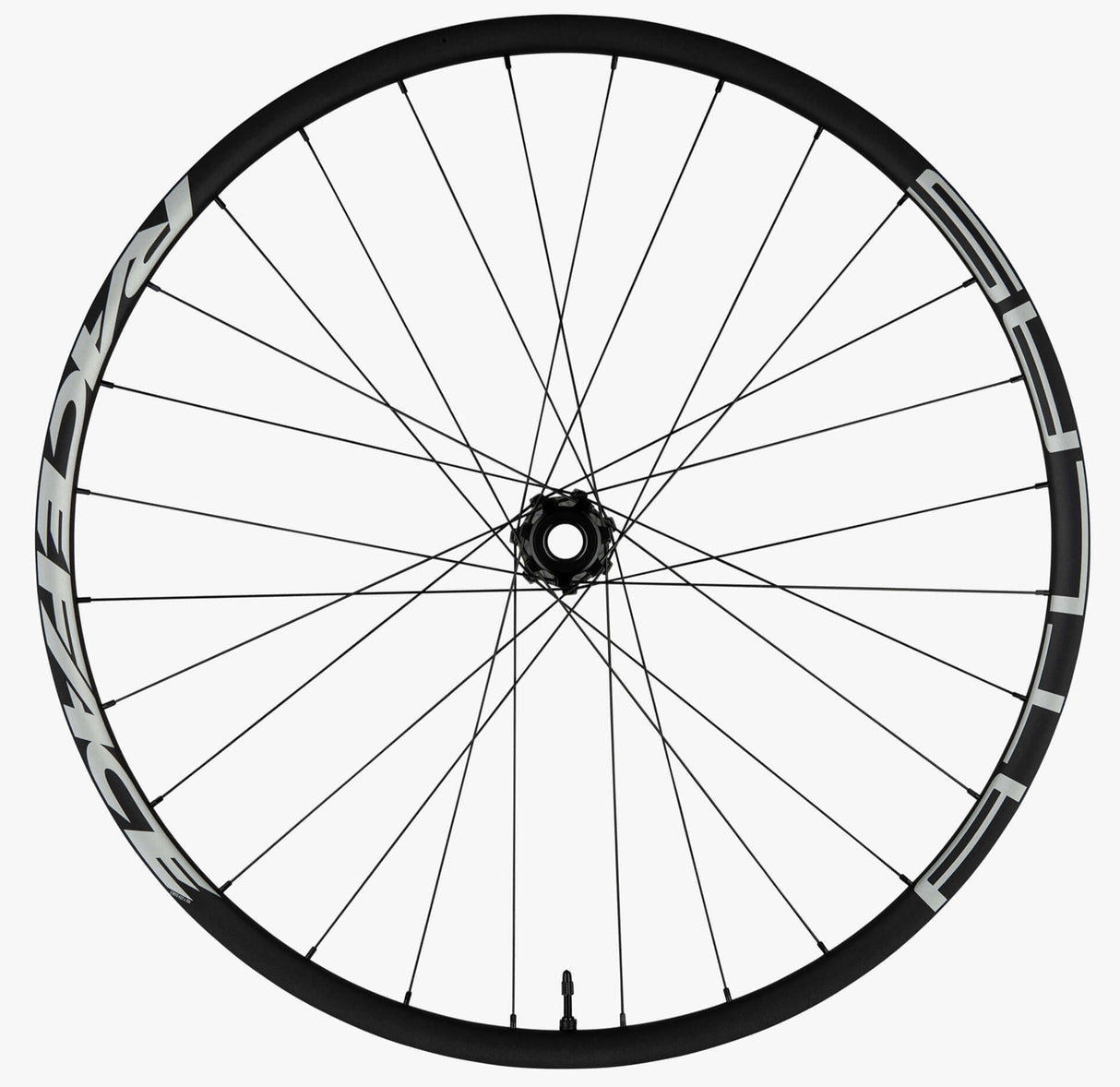

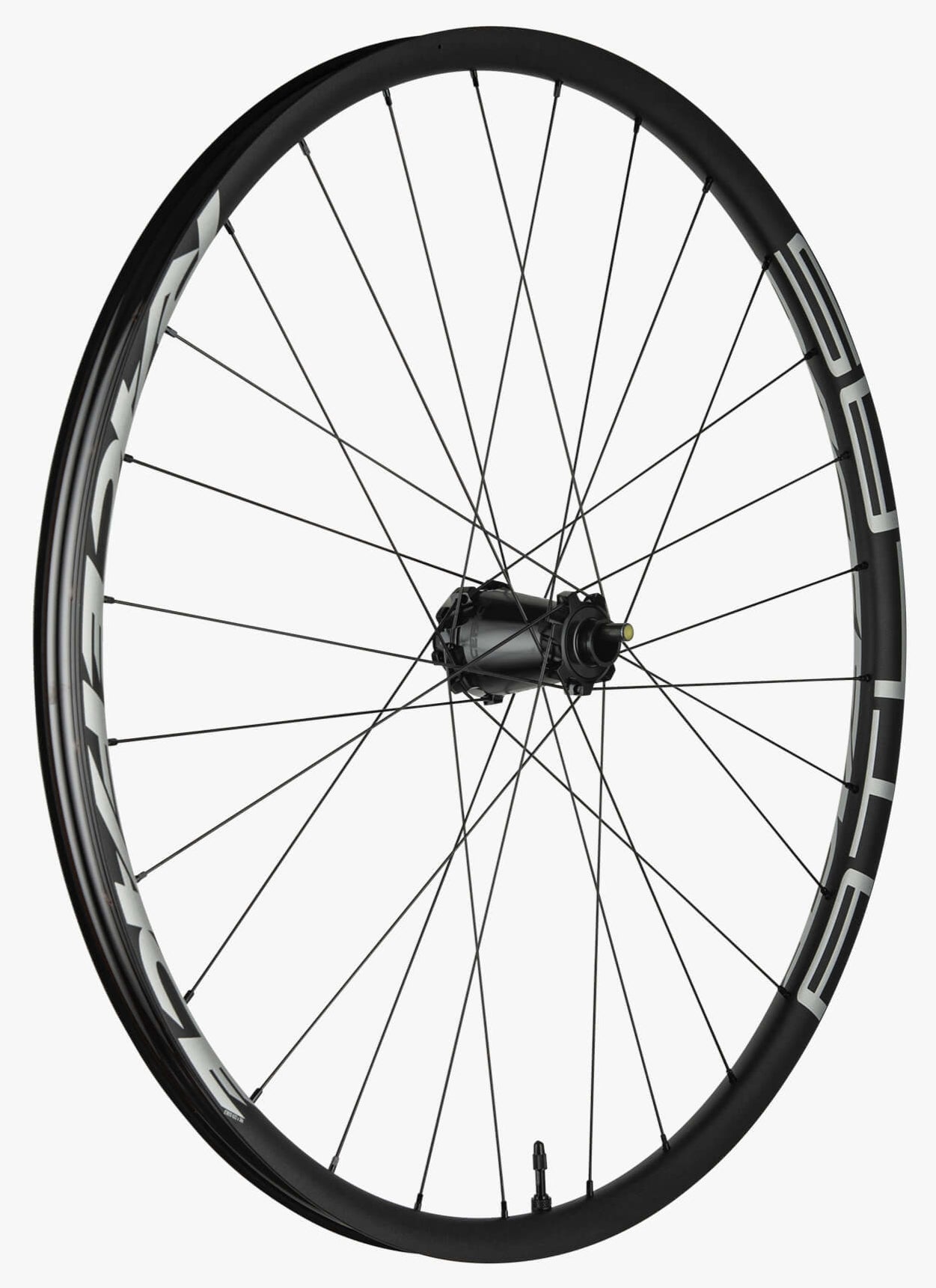

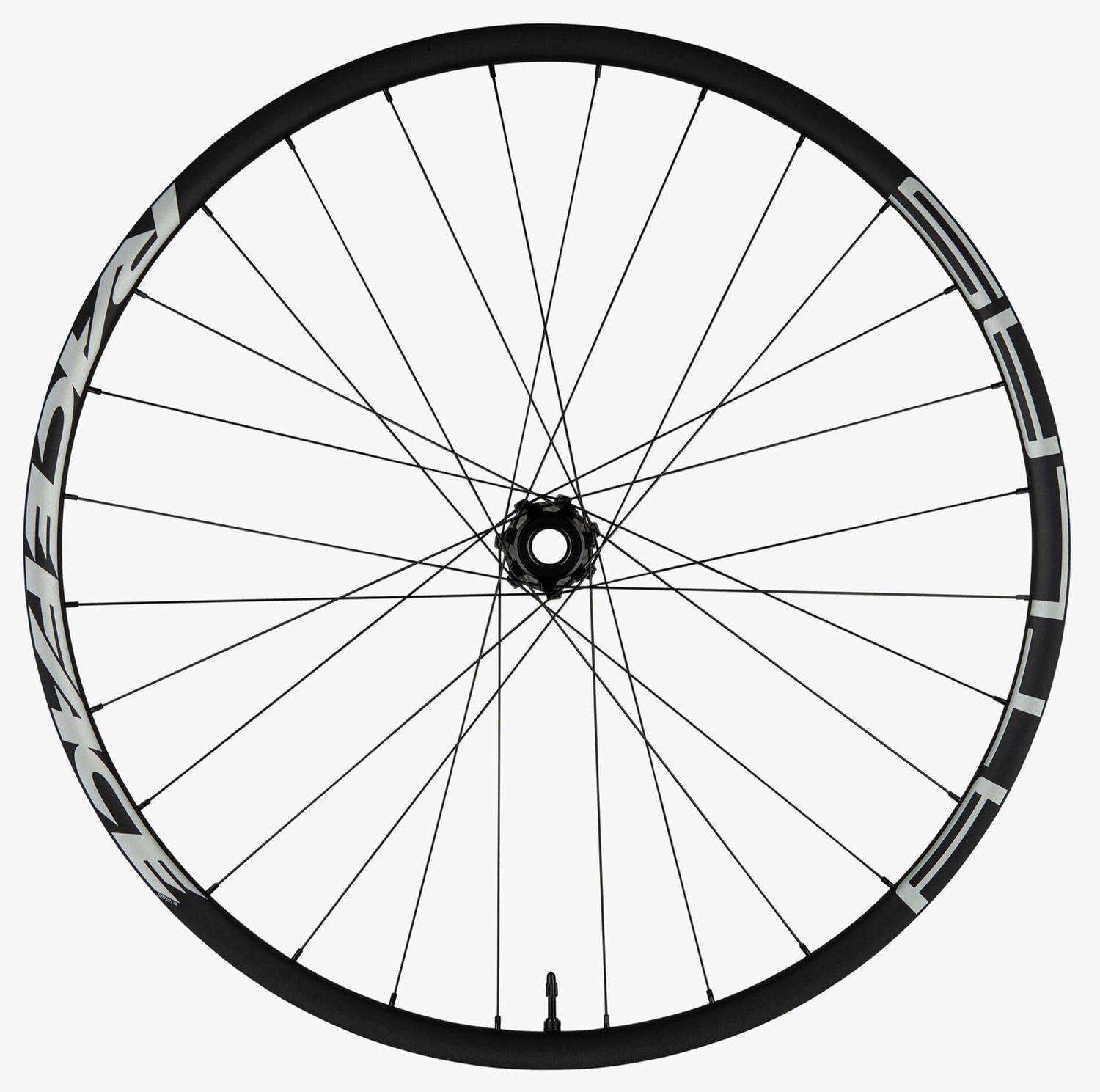

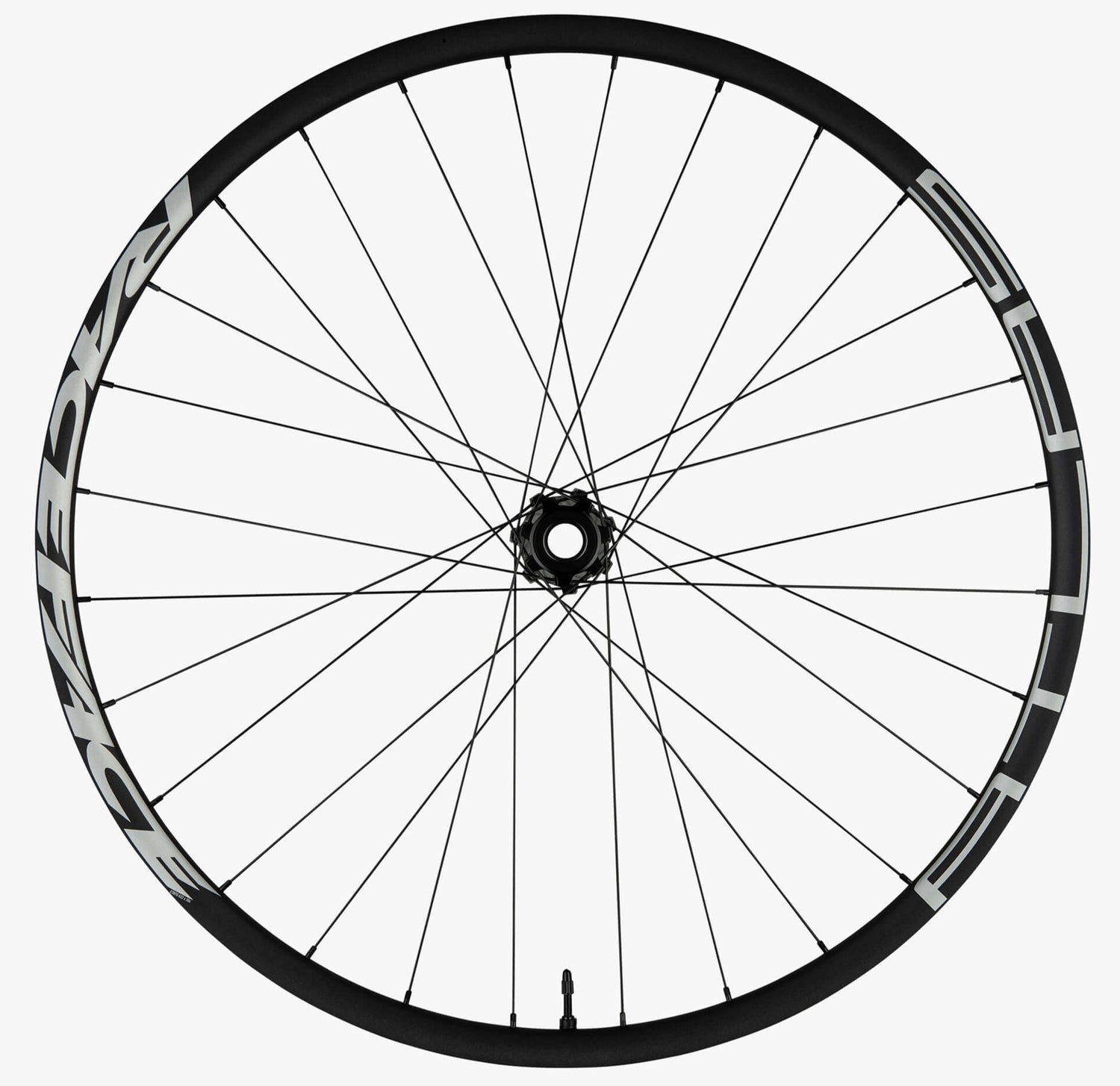

The reimagined Atlas wheelset returns to Race Face's heritage, delivering uncompromising durability for conquering extreme downhill terrain. Engineered to maintain stability through aggressive rock sections while providing the confidence needed for substantial jumps. Install these 29-inch front wheels and experience superior control in demanding conditions.
Taking The Hits.
Crafted from premium 6069 alloy, the Atlas rim incorporates an advanced bead profile specifically engineered to resist denting and flattening under extreme conditions. This technical design element ensures exceptional structural integrity when subjected to the intense forces encountered during aggressive gravity-driven riding scenarios.
Spoke Truth
The engineered offset spoke bed configuration utilizes robust double-butted straight pull spokes, delivering optimal structural rigidity and precise weight distribution. This technical construction methodology ensures competition-grade performance stability while minimizing maintenance requirements throughout intensive riding sessions.
A Hub Above
Featuring the Vault hub's reinforced oversized architecture and expanded bearing placement for maximum structural integrity, complemented by an ultra-responsive 3-degree engagement system. This precision-engineered component delivers instantaneous power transfer for riders demanding peak performance in technical terrain.
KEY FEATURES
Color
Black
Includes
5 extra spokes included with rear wheels 20 x 110 Boost Front Wheels come with endcaps installed for 20mm axle, but include 15mm axle conversion endcaps as spares. All 12 x 150/157 Rear wheels come with hub endcaps installed for 12 x 157 configurations. Endcaps for 12 x 150 configurations included as spares.
Material
Aluminum 6069
Nipples
Black alloy nipples
Ext Rim Width
34 mm
Int Rim Width
30 mm
Spoke Butting
2.0/1.8/2.0
Spoke Count
28
Spoke Head Type
Straight pull
Spoke Lacing
3X
Spoke Offset
4.5 mm
Tubeless
Tubeless ready
Weight
1950 g (27.5"), 2044 g (29")
Weight Conditions
Wheelset
Spoke Length Front & Rear
282mm (27.5"), 301mm (29")
