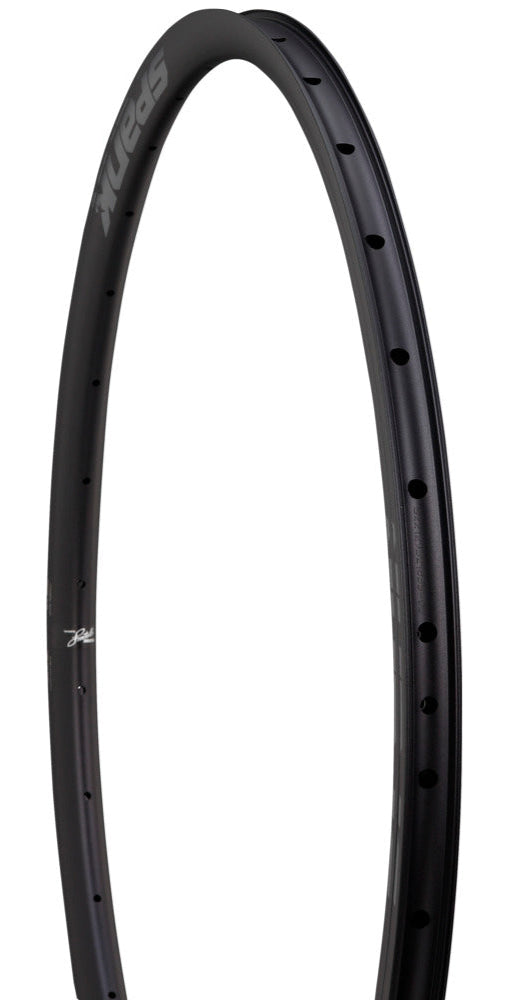

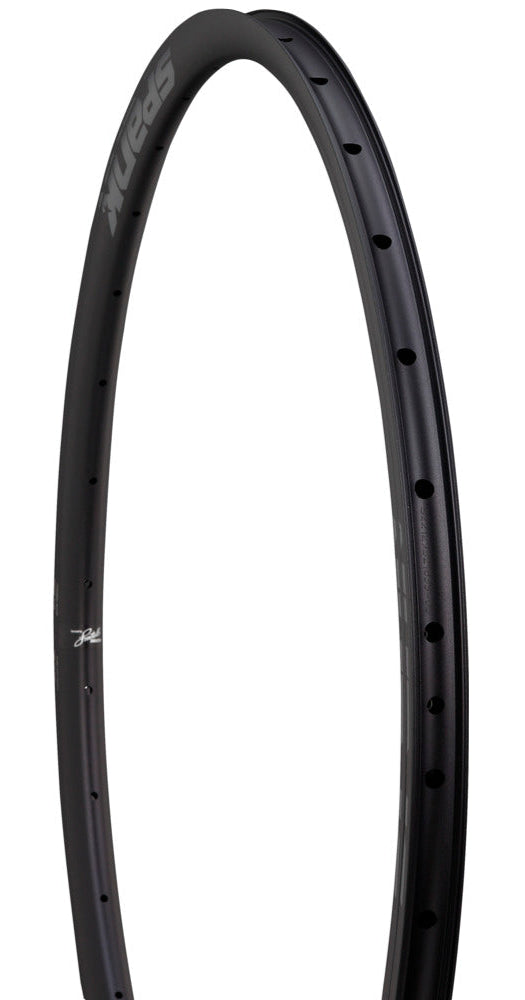

Upgrade your bike's performance with the Spank Wing 22 Rim. Specifically designed for 700C and 29 inch bikes, this rim will take your riding to the next level with its precision and durability.
KEY FEATURES
Disc specific, tubeless ready, clincher rim, optimized for mixed on/off road use
Moderate 22mm inner width, provides exceptional versatility in tire pairing, from wide road slicks to gravel knobbies
Deep well 24.5mm profile height, enhances aero properties, as well as stiffness and torsional rigidity
Bead Nip tubeless bead seats provide reliable tubeless performance even at low pressures
Shotpeen finish heightens durability and fatigue life
RECOMMENDED FOR: ASTM 3, Gravel
RIDER TYPE: HEAVY TO LIGHT RIDER: Heavy to Medium Impact
SPECIFICATIONS
HOLE COUNT:
28 / 32
SIZES (inches):
700C
WEIGHT +/- (g):
445
INNER WIDTH (mm):
22
OUTER WIDTH (mm):
25.5
PROFILE HEIGHT (mm):
24.5
ETRTO:
622x22
ERD++ (mm):
587++
TUBELESS:
Tubeless Ready
VALVE:
F/V Presta
TIRE FIT:
28c to 55c
FEATURES:
Disc Specific Rim, Dynamal Alloy
++: SPANK ERD
= Rim diameter (mm) with 2x spoke bed thickness (mm) included. (++) = add your own nipple head height in mm x2
