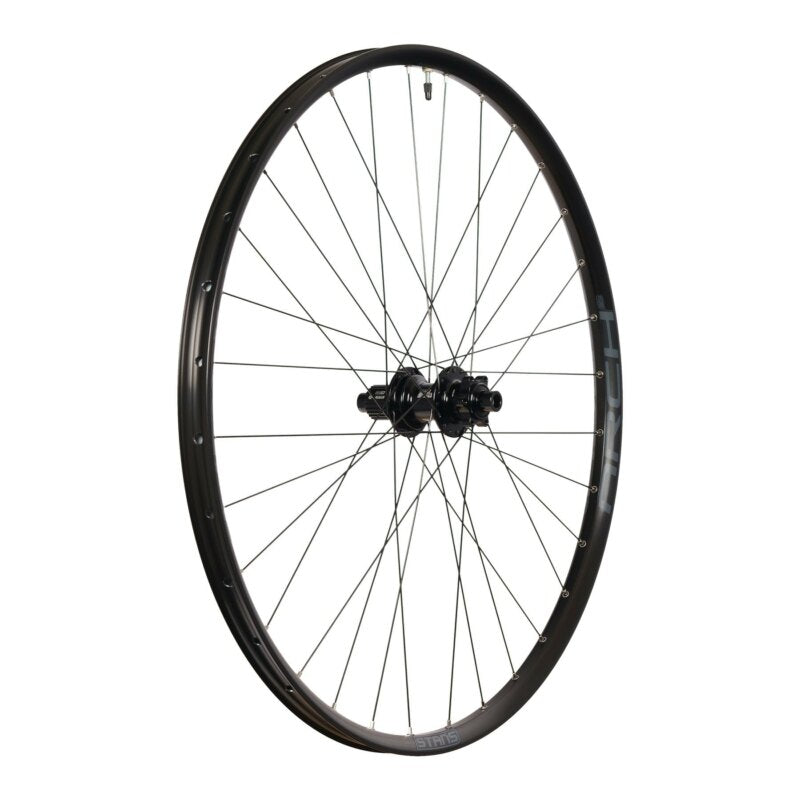

Stans Notubes Arch S2 29 6 Bolt 12x148mm Sram XD MTB Rear Wheel

$499.00 $799.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

$10 Flat Rate Shipping (excludes some large/oversized items) AUS only.

$15 Flat rate Express Shipping option available for non-bulky items. Usually delivered the next business day (Metro Areas) AUS only.

Same Day Dispatch on orders before 2pm (excludes bikes).

Delivery times will vary from 2-5 business days for metro areas and 7-14 business days for rural and remote areas.

Seen a lower price? Contact us.

Arch S2 wheelsets have the versatility to handle a wide range of riding conditions and are the ideal upgrade for Trail, AM, Enduro, and eBikes. When your average ride includes both tough climbs and rough descents and you want the best tubeless system in the business, the Arch S2 is for you.

Stan's Patented Bead Socket Technology means easier tubeless inflation and more confidence on the trail. The 6061 aluminium Arch S2 rims use a reinforced spoke bed and eyeletted spoke holes for strength, along with a reliable sleeved joint that creates one very tough overall wheel. The 28mm width is extremely versatile, offering excellent cornering performance with 2.2-2.5" tires.

The Arch S2 rolls on E-sync hubs made specifically to handle abuse and the added forces of today's capable trail bikes and even heavier eBikes. E-sync hub durability is found in the pawl design that reduces stress on freehub and bearings, heavy duty cromoly steel axles and double row Enduro bearings, as well as the special heat-treated steel ratchet rings. E-sync hubs are also designed for fast engagement, with four pawls needing only 8.18° of rotation to engage simultaneously and drive you forward. E-sync hubs are perfect for eBikes and riders who demand stronger components, but still want the fast engagement of a high-performance hub. S2 wheels are built to last long, but also be easy to service and update with changing axle and cassette standards. Traditional J-bend spokes and lacing have a proven history of ride quality, durability, and serviceability, and matched S2 wheelsets all use a single spoke length, making it easy to own and service your S2 wheelset for years.

Available with Shimano Micro Spline, HG, or SRAM XDR freehub, and 6-bolt or Centerlock brake style, with options to fit all popular axle configurations. Tubeless ready with rim tape comes pre-installed. When you need a reliable wheelset that's more than capable on both the climbs and the descents, the Arch S2 is for you.

Technology: BST, E-sync, WideRight



Specifications

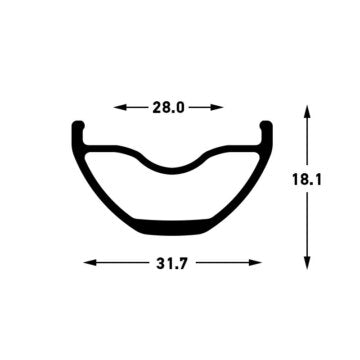

  • Rim Internal Width: 28.0mm
  • Rim External Width: 31.7mm
  • Rim Depth: 18.1mm
  • Spokes: Sapim Race 2.0/1.8/2.0
  • Nipples: Sapim Polyax Secure Lock 2.0 Brass Silver
  • Hub: E-sync
  • Hole Count: 32-hole, 32-hole
  • Drilling Style: Symmetrical
  • Rim Material: 6061 Aluminum Alloy
  • Hub Color: Black
  • Rim Color: Black
  • Brakes: Disc only
  • Rim Weight: 487g (27.5") / 520g (29")
  • Wheelset Weight: 1936g (27.5") / 2030g (29")
  • Front Wheel Weight: 890g (27.5") / 937g (29")
  • Rear Wheel Weight: 1046g (27.5") / 1093g (29")
  • ERD: 564mm (27.5") / 603mm (29")
  • ETRTO: 584x28.0 (27.5") / 622x28.0 (29")
  • ISO: 27.5"x31.7mm / 29"x31.7mm
  • Tape: 30mm
  • Valve: 35mm Presta
  • Max Spoke Tension: 130kgf (1275N)
  • Max Rider Weight: 230lbs (104 kilo)
  • Max Pressure with 2.20" Tire: 41psi
  • Max Pressure with 2.50" Tire: 35psi
