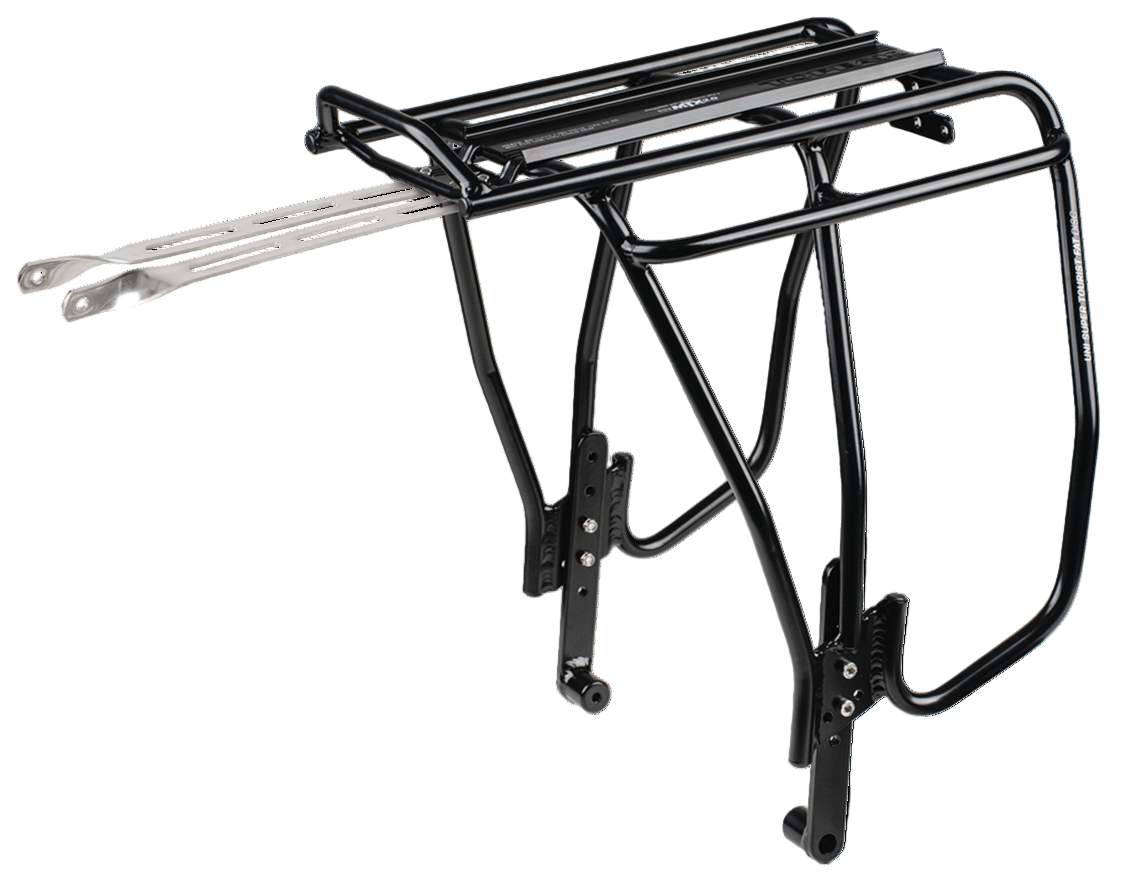

This aluminum tubular rear rack is specifically engineered for Fat Bikes with disc brakes, accommodating 24” and 26” wheels with adjustable legs for a precise fit. Its integrated side bar offers an additional lower pannier mounting point, maximizing the cargo area on top. Equipped with the MTX QuickTrack® plate, it supports compatibility with Topeak MTX TrunkBags, rear baskets, and most other rack bags and panniers available.
Not compatible with asymmetric rear stay design fat bike frames. Not compatible with URBAN BASKET DX 18L (TB2012) / URBAN BASKET DX 22L (TB2013).
KEY FEATURES
Attachment
Frame rack bosses
Material
6061 T-6 hollow aluminum
Compatibility
MTX TrunkBags / MTX rear baskets
Max Weight Capacity
26 kg / 57 lb, Meets EN 14872 / ISO 11243
Limitations
Not compatible with asymmetric rearstay design fat bike frames
Added Features
Includes extra long mounting bracket (34.5 cm) Adjustable length, Solid fender top, RedLite® Mount Tail Light Mount, Side bar for side pannier
Size
43 x 34 x 29 cm / 16.9” x 13.4” x 11.4”
Weight
1265 g / 2.79 lb
Adjustable Height
Shorten: 339 mm (+-3 mm) Middle: 359 mm (+-3 mm) Longer: 379 mm ( +-3 mm)
