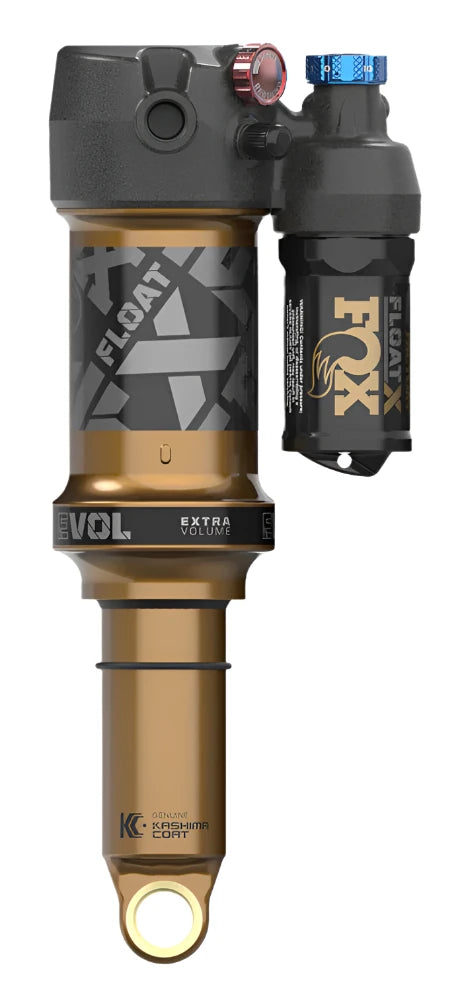

Fox Factory FLOAT X Trunnion Evol LV 2pos-Adj Rear Shock

The authority in all-mountain biking. With its superior damping, reliable performance, and unmatched durability, the FLOAT X shock is the ideal lightweight option for riders tackling aggressive trails and enduro races. Effortlessly adjust the compression and rebound using the tool-free setting to match the current trail and riding conditions. The 11-click low-speed compression dial and 2-position (Open or Firm) lever switch operate independently, allowing for easy customization while riding. Each FLOAT X size is paired with a specific length piggyback reservoir, optimizing the shock's performance-to-weight ratio. Equipped with a generous EVOL air chamber, the shock maintains consistent ride feel on even the longest descents. Designed for aggressive trail and all-mountain riders, this hard-hitting shock is compatible with a variety of frame designs and geometries.

KEY FEATURES

• High-flow piston architecture for smooth compression and wide range of tuneability
• Reservoir with secondary compression circuit for enhanced bump sensitivity, tire grip, and descending performance
• Base Valve for lower IFP pressures without cavitation
• Volume spacers in precise increments for ultra-fine air spring tuning
• MCU bottom-out bumper for smooth end-stroke progressivity
• Numbered tool-free 12-position single-turn LSC (Low Speed Compression) adjuster
• Independent firm mode circuit via on-the-fly flickable 2-position adjuster
• Wide range of rebound adjustment to suit all preferences and terrains
• Optimized reservoir lengths per shock size for reduced weight and improved fitment
• Hydraulic top-out feature to eliminate harshness at full extension
• Optimized air volumes for lower operating pressures and winder range of tuning
• Convenient air valve location for frame fitment and pump access
• Bearing hardware compatible both sides
• Kashima coating
• Fox Mounting Hardware. Sold separately
• Trunnion sizing available: 185x52.5, 185x55, 205x60, 205x62.5
• Metric sizing also available:  190x45, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65

Find the Fox Tuning Guide here.
